Removal And Installation: Installation

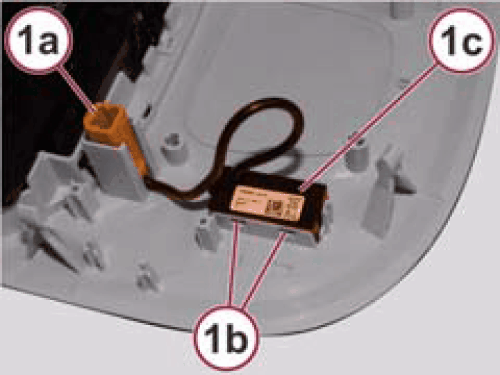

GC0174137Courtesy of CHRYSLER GROUP, LLC
  1. Position the microphone (1c) to the back of the front roof lamp unit housing.
  2. Firmly press the microphone connector (1a) into the housing until the connector is fully engaged with the housing.
  3. Firmly press the microphone (1c) into the housing until the retainer is fully engaged.
  4. Install the roof lamp unit into the headliner. Refer to LAMP, DOME, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable.
