Removal And Installation: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

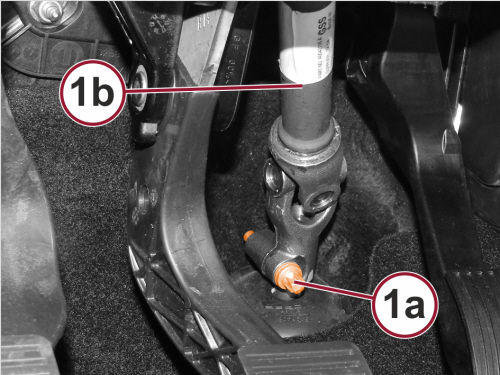

    GC0173169Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolt (1a) attaching the intermediate shaft (1b) to the steering box pinion.

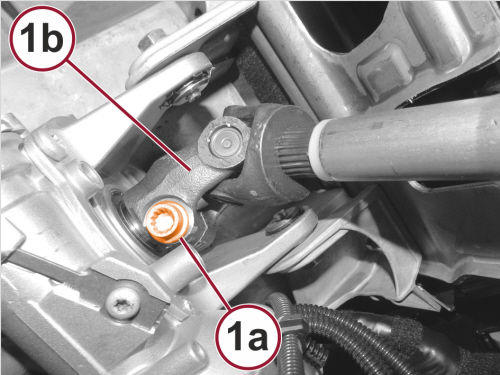

    GC0173040Courtesy of CHRYSLER GROUP, LLC
  4. Remove the mounting bolts (1a) and place the electric power steering unit (1b) and respective support bracket aside.

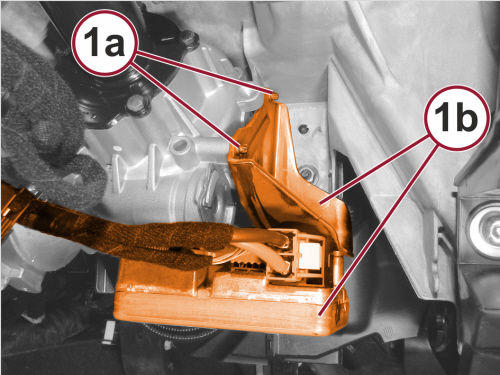

    GC0173002Courtesy of CHRYSLER GROUP, LLC
  5. Remove the bolt (1a) securing the intermediate shaft (1b) to the electric power steering intermediate shaft.

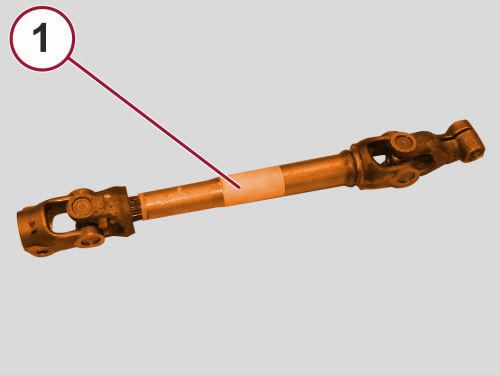

    GC0173081Courtesy of CHRYSLER GROUP, LLC
  6. Remove the intermediate shaft.
