Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  3. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  4. Remove the front recovery hook if equipped.
  5. Remove the lower load beam. Refer to LOAD BEAM, LOWER, REMOVAL AND INSTALLATION .
  6. Remove the front stabilizer bar links. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
  7. Remove the front hub nut. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION .
  8. Remove the outer tie rod end from the knuckle. Refer to TIE ROD, STEERING, REMOVAL AND INSTALLATION .

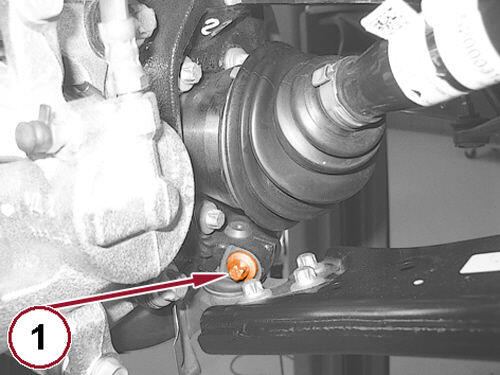

    GC0165930Courtesy of CHRYSLER GROUP, LLC
  9. Remove the lower control arm to knuckle bolt (1), and remove the knuckle from the lower control arm.
  10. Remove the halfshaft from the hub and bearing.
    NOTE:

    Properly support halfshaft.

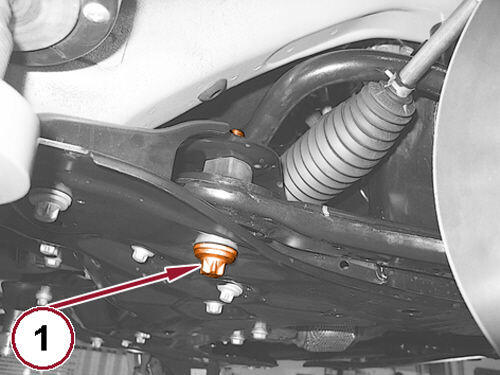

    GC0165894Courtesy of CHRYSLER GROUP, LLC
  11. Remove the lower control arm to cradle rear bolt (1).

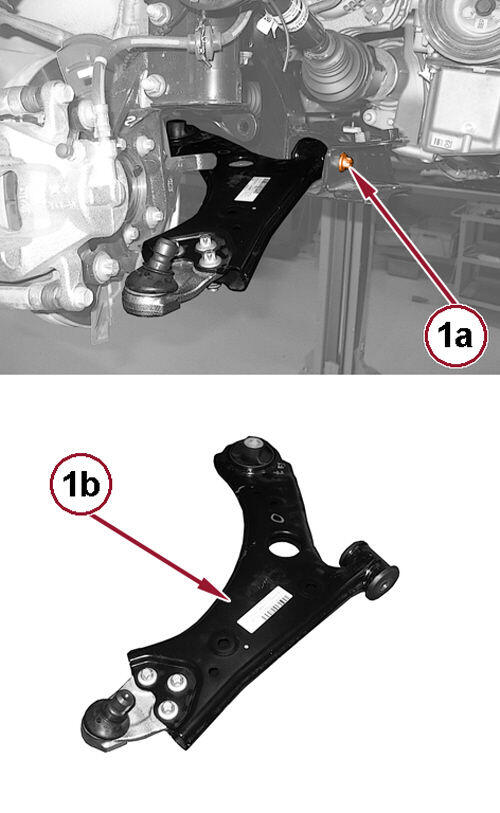

    GC0163482Courtesy of CHRYSLER GROUP, LLC
  12. Remove the lower control arm to cradle front bolt (1a), and remove the lower control arm (1b) from the vehicle.
