Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .

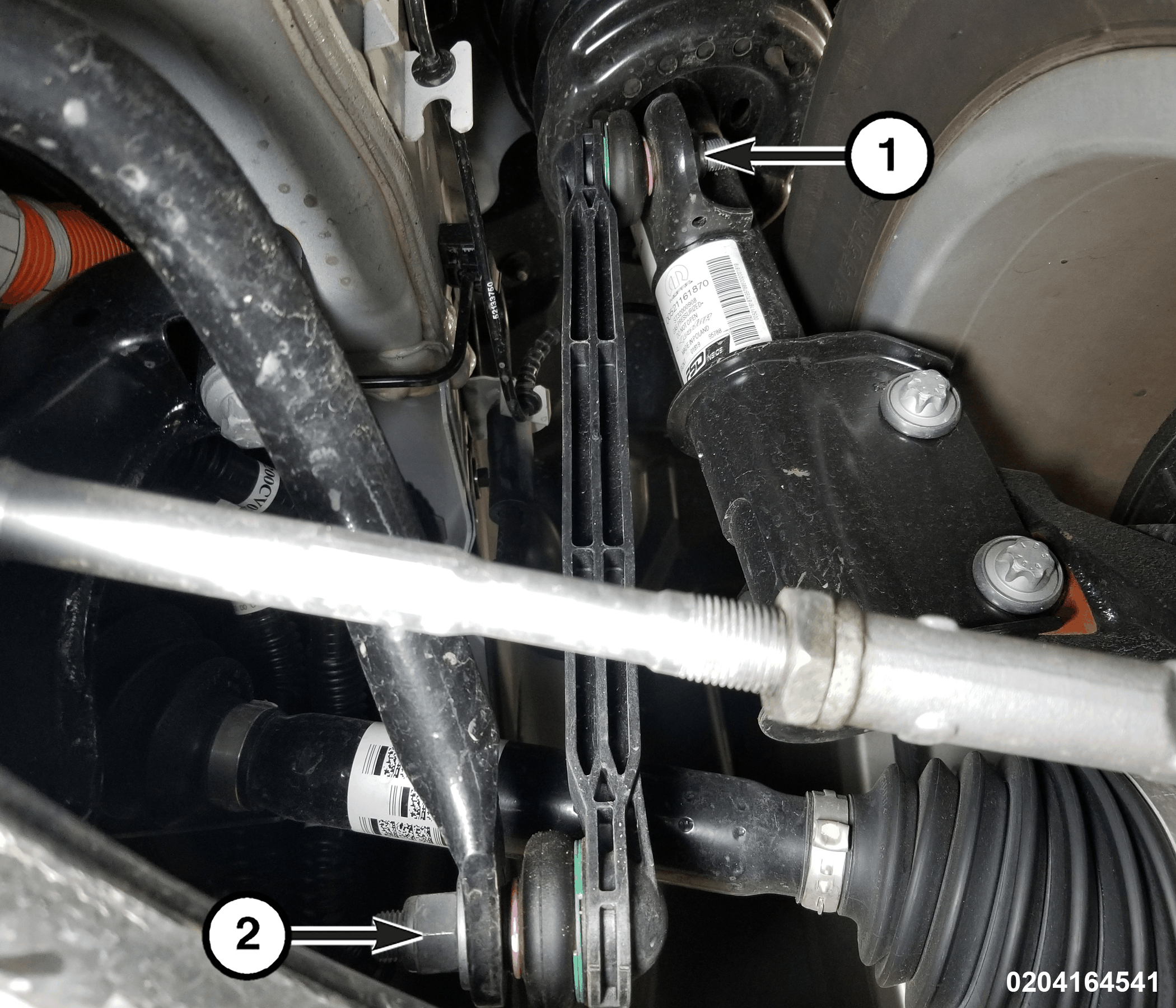

    GC0190933Courtesy of CHRYSLER GROUP, LLC
  3. Remove and DISCARD  the stabilizer bar link bolt (2) at the stabilizer bar. Separate the stabilizer bar link from the stabilizer bar.
  4. Remove and DISCARD  the stabilizer bar link bolt (1) at the front strut. Separate the stabilizer bar link from the front strut.
  5. Remove the stabilizer bar link.
