Removal And Installation: Removal

  1. Remove the center instrument panel bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .
    GC0174426Courtesy of CHRYSLER GROUP, LLC

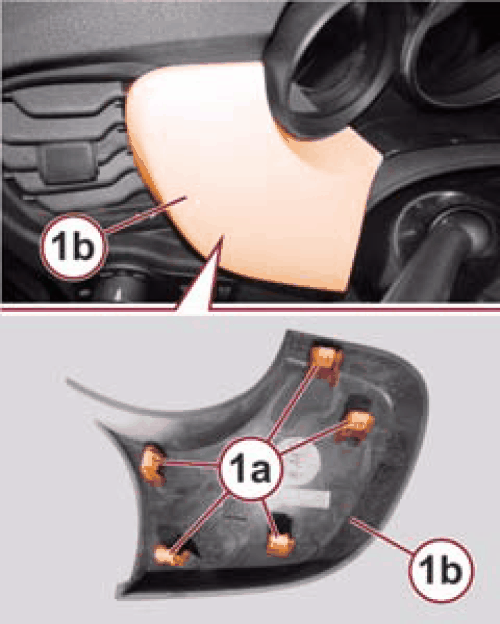

  2. Using the appropriate tool to pry up the retainers (1a) and remove the left instrument panel bezel (1b).
    GC0174162Courtesy of CHRYSLER GROUP, LLC

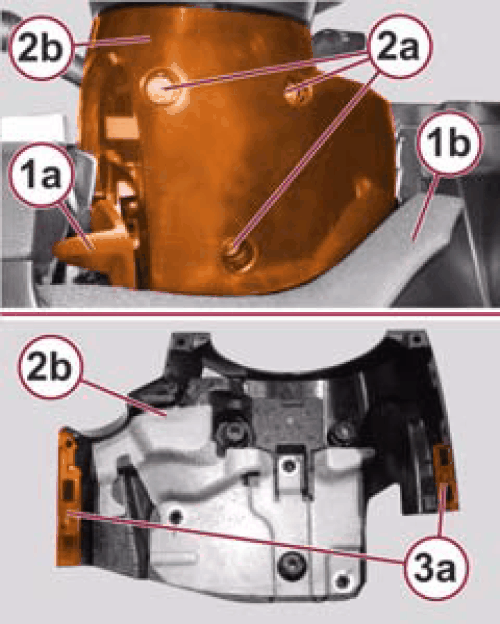

  3. Lower the steering wheel position fixing lever (1a) and move the sponge trim (1b) of the lower left dashboard trim.
  4. Remove the fixing screws (2a) for the lower steering column trim (2b).
  5. Remove the lower trim (2b) releasing the internal retainers (3a).
    GC0174408Courtesy of CHRYSLER GROUP, LLC

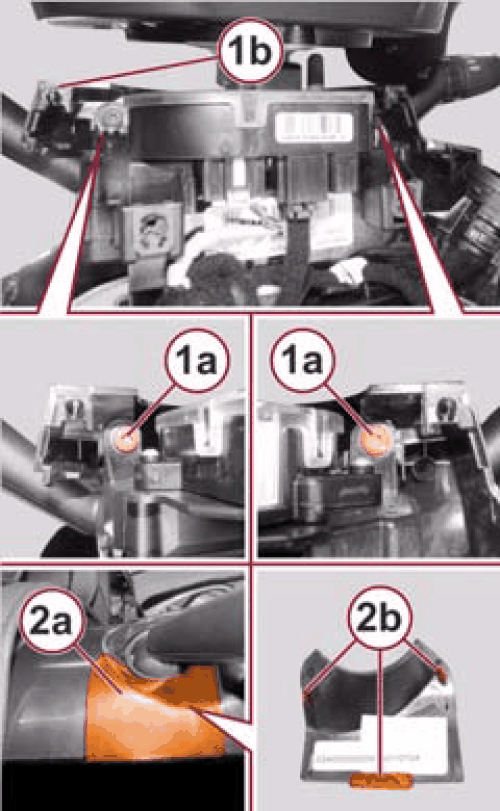

  6. Remove the fixing screws (1a) for the upper trim (1b).
  7. Working on the steering column upper cover, remove the trim (2a) releasing the retainers (2b).
    GC0174516Courtesy of CHRYSLER GROUP, LLC

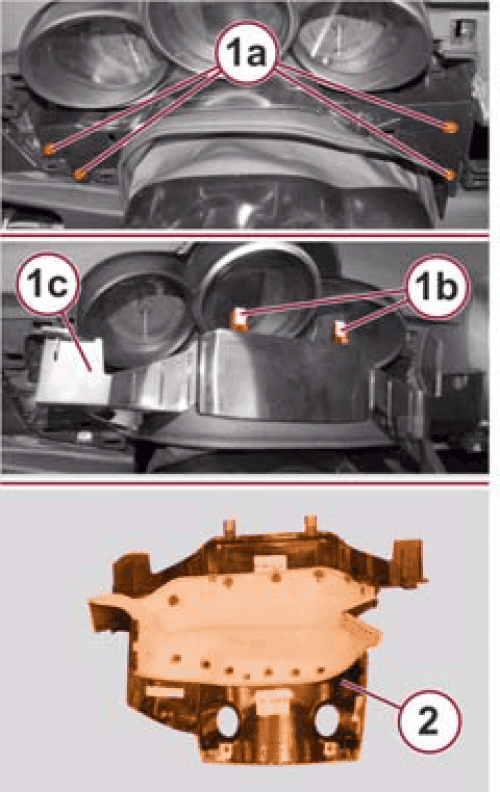

  8. Remove the fixing screws (1a), release the retainers (1b) and move the aesthetic coat of the steering column upper cover (1c) aside.
  9. Remove the upper trim (2), releasing it from the steering column stalks.
