Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Remove the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

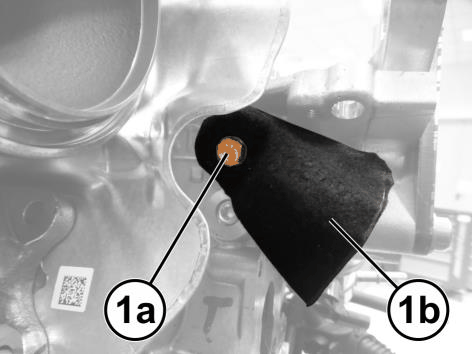

4. Remove the bolt (1a) and the heat shield (1b).

   Courtesy of CHRYSLER GROUP, LLC

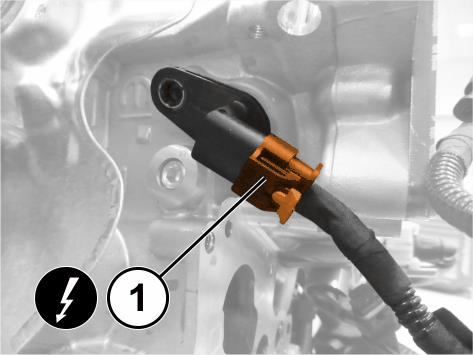

5. Disconnect the wiring harness connector (1) from the Camshaft Position (CMP) sensor.

   Courtesy of CHRYSLER GROUP, LLC

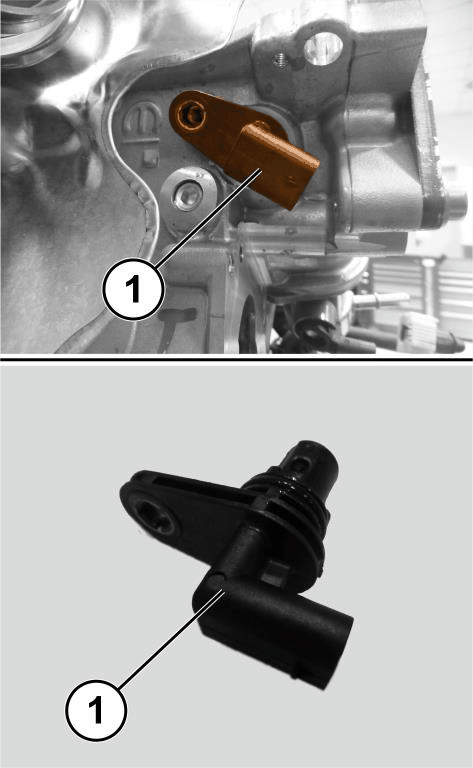

6. Remove the CMP sensor (1) complete with O-ring.

INSTALLATION

1. Install the CMP sensor with a NEW  O-ring and connect the wiring harness connector.
2. Install the heat shield and securely tighten the bolt.
3. Install the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
5. Remove the support and lower the vehicle.
