Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Mark the positions of the ignition coils so they can be installed in the same cylinder.

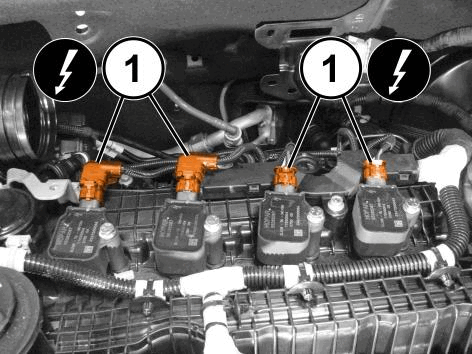

3. Unlock and disconnect the ignition coil wire harness connectors (1).

   Courtesy of CHRYSLER GROUP, LLC

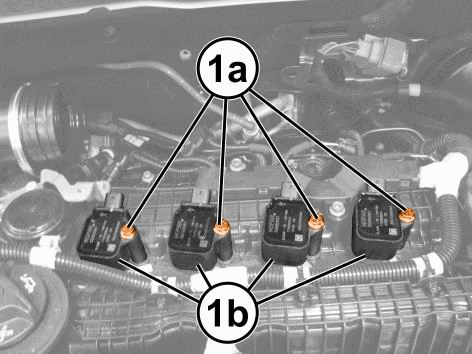

4. Remove the bolts (1a) and remove the ignition coils (1b).

INSTALLATION

1. Install the ignition coils into the correct position as marked previously and tighten the ignition coil bolts to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
2. Connect and lock the wire harness connectors to the ignition coils.
3. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
4. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
