Sensor, Engine Coolant Temperature: Removal: 2.4L
WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

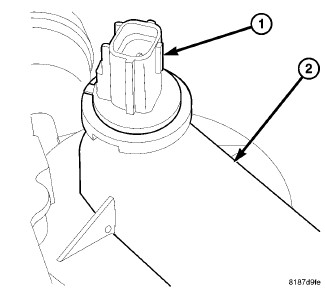

| 1 - ETC |
| 2 - COOLANT ADAPTER |
- Disconnect and isolate the negative battery cable.
- Drain the cooling system. Refer to STANDARD PROCEDURE .
- Disconnect the Engine Coolant Temperature (ECT) sensor wire harness connector.
- Remove the ECT sensor (1).
