Occupant Restraint Controller: Removal

WARNING: This page is about a different car, the 2020 Fiat 124 Spider. However, it is still accessible from the selected car via links, so may be relevant.

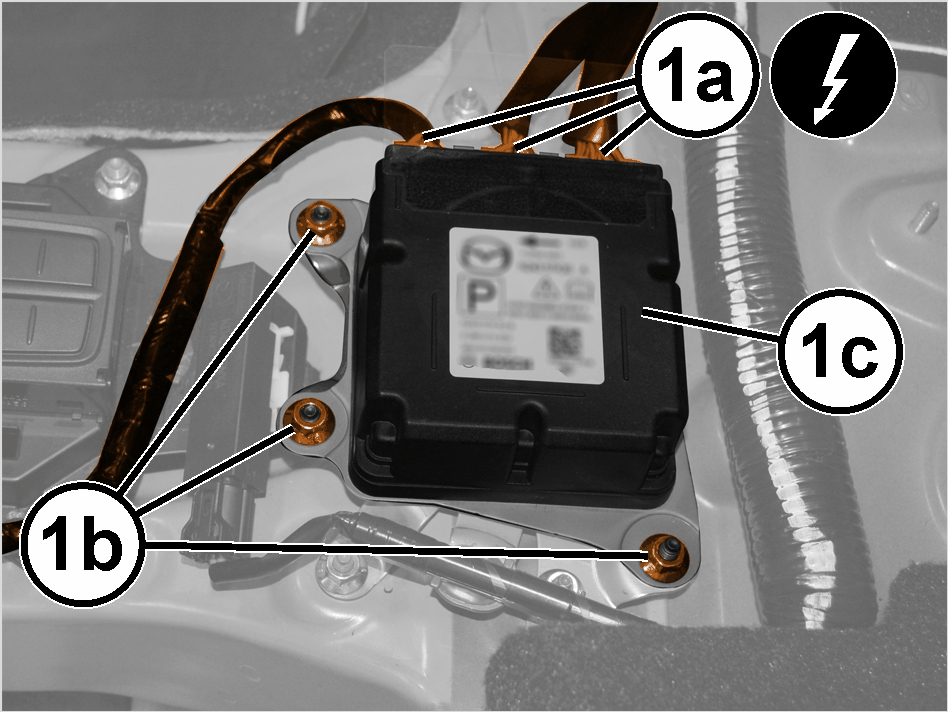

GC0176029Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Fold the seat backs forward.
  3. Remove the rear trim on the center console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
  4. Remove the passenger compartment back trim panel. Refer to PANEL, BACK TRIM, REMOVAL AND INSTALLATION .
  5. Disconnect the wire harness connectors (1a) and remove the nuts (1b) for the Occupant Restraint Controller (ORC) bracket (1c).
