Module, Radio Frequency (RF Hub): Removal

WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

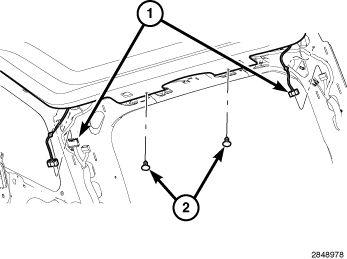

GC0146128Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Partially remove the headliner to access the Radio Frequency (RF) Hub located at the center rear. Refer to HEADLINER, REMOVAL .
    GC0147719Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the RF Hub wire harness connectors (1).
  4. If equipped, disconnect the remote start antenna wire harness connector from the RF Hub.
  5. Remove the retainers (2) and remove the RF Hub (3) from the vehicle.
