Sensor, Ambient Temperature: Installation

WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

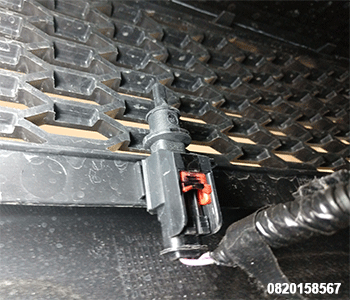

GC0190423Courtesy of CHRYSLER GROUP, LLC
  1. Install the ambient temperature sensor.
  2. Connect the wire harness connector to the ambient temperature sensor.
  3. Install the lower front facia closeout panel. Refer to FASCIA, FRONT LOWER, CLOSEOUT, INSTALLATION .
  4. Connect the battery negative cable.
