Isolator, Front CROSSMEMBER, Frame: Installation
WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

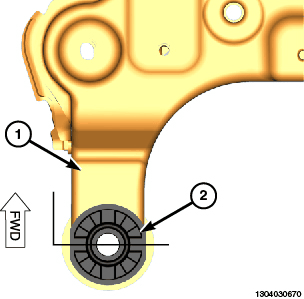

- Place the front isolator (2) onto the crossmember (1) and position as indicated.

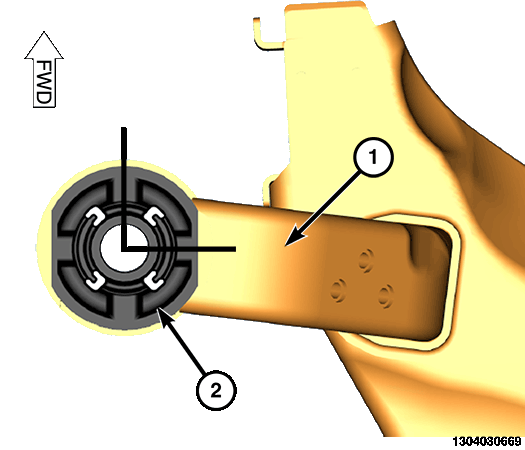

- Place the rear isolator (2) onto the crossmember (1) and position as indicated.

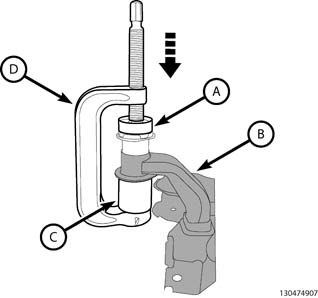

- Assemble tools over isolator crossmember assembly as shown:
- (special tool #9678, Press Plug)
- Crossmember
- (special tool #9776, Cup, Receiver)
- (special tool #C-4212F, Press, Ball Joint)
- Tighten Press, (D) screw-drive, pressing isolator into crossmember (B). Install isolator until isolator can flange contacts surface of crossmember.
- Install the crossmember
Refer to CROSSMEMBER, REAR SUSPENSION, INSTALLATION .
NOTE:
Prior to using special tools, lubricate Press, Ball Joint (special tool #C-4212F, Press, Ball Joint) (1) threads to provide ease of use and promote tool longevity.
