Module, Telematics Gateway (TGM): Removal

WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
GC0147717Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

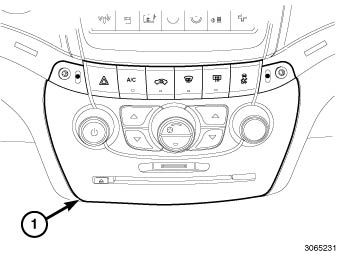

  2. Remove the switch-bank and bezel assembly (1). Refer to POD, SWITCH BANK, REMOVAL .
    GC0147702Courtesy of CHRYSLER GROUP, LLC

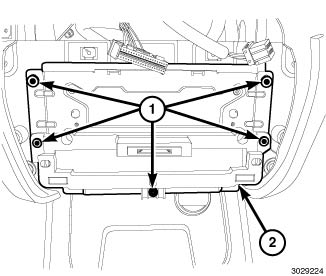

  3. Remove the retainers (1) from the Telematics Gateway Module (TGW) (2) and pull out far enough to access the connectors on the back of the TGW.
    GC0144027Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

  4. Disconnect the antenna(s) (1), Hands Free Module (HFM) and UCI cables (4), video cable (3) and wiring connectors (2) from the TGW.
  5. Remove the TGW from the vehicle.
