Module, Radio Frequency (RF Hub): Installation
WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Replace and Program the module(s) per the RF-Hub, BCM, PCM FOBik and ELV Replacement and Programming Order Guide. Refer to STANDARD PROCEDURE .

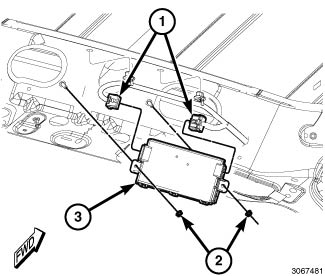

- Position the Radio Frequency (RF) Hub (3) to the vehicle and install the retainers (2).
- If equipped, connect the remote start antenna wire harness connector to the RF Hub.
- Connect the RF Hub wire harness connectors (1).
- Install the headliner. Refer to HEADLINER, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
NOTE:
Program the RF-Hub. Refer to STANDARD PROCEDURE .
