Module, Keyless Ignition Node (Kin): Installation
WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

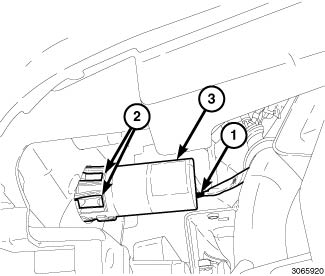

- Push the Keyless Ignition Node (KIN) (3) into the instrument panel. Tab on KIN will line up with notch in the instrument panel, push in until the KIN clips securely into place.
- Connect the wire harness connector (1) to the KIN module.
- Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
- Install the switch bank assembly. Refer to POD, SWITCH BANK, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
