Module, Integrated Center Stack Screen (ICSSM): Removal: Mid
WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

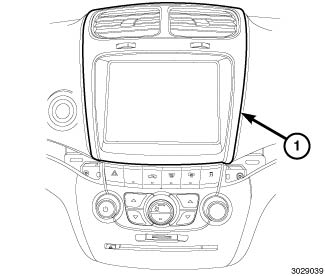

- Remove the instrument panel center bezel (1). Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL
.NOTE:
If the connector release tab is broken, use a pocket screw driver to release the tab. Do not replace the harness with this issue. The harness will still function as designed and the connector will provide an audible click when properly installed.

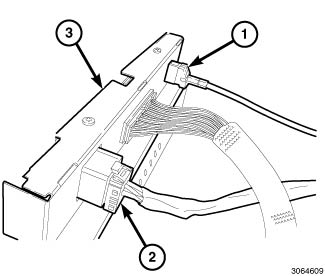

- Disconnect the wire harness connectors (1 and 2) from the rear of the Integrated Center Stack (ICS) screen module (3) to allow more access to the 40-way connector.CAUTION:
Push the 40 way connector in before pushing on the locking clip. Failure to follow these instructions will damage or break the connector locking clip.
CAUTION:Never pull the connector out by the wires. Failure to follow these instructions will damage or break the wires or connector.
- Push in on the 40-way connector (1).
- Gently push down on the connector release lock (1).

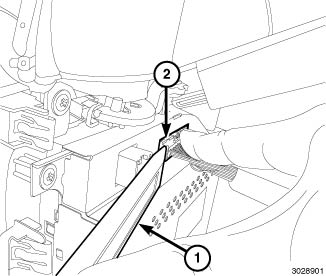

- Using a pocket screw driver or a trim stick (special tool #C-4755, Trim Stick) or equivalent (1), gently pry on one side of the connector (2).

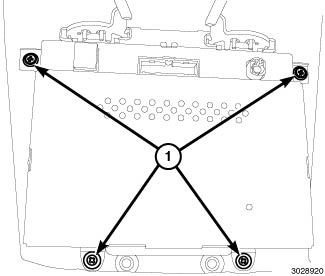

- Remove the retainers (1) and remove the ICS screen module from the instrument panel bezel.
