Module, A/C And Heater: Removal

WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

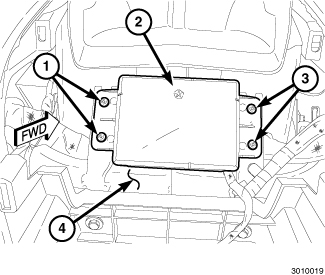

GC0147666Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the center bezel from the instrument panel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
  3. Remove the fasteners (1 and 3) that secure the Heating, Ventilation, and Air Conditioning (HVAC) module (2) to the instrument panel support (4).

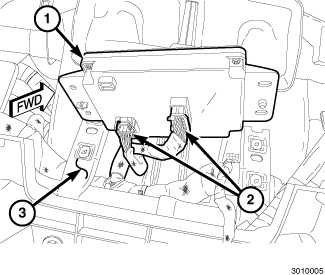

    GC0147665Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the wire harness connectors (2) and remove the HVAC module (1) from the instrument panel support (3).
