Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  3. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
  4. Remove the front bumper reinforcement. Refer to REINFORCEMENT, BUMPER, FRONT, REMOVAL .
    GC0190137Courtesy of CHRYSLER GROUP, LLC

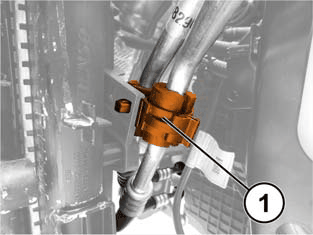

  5. Disengage the automatic transmission oil pipes retaining clip (1).
    GC0207978Courtesy of CHRYSLER GROUP, LLC

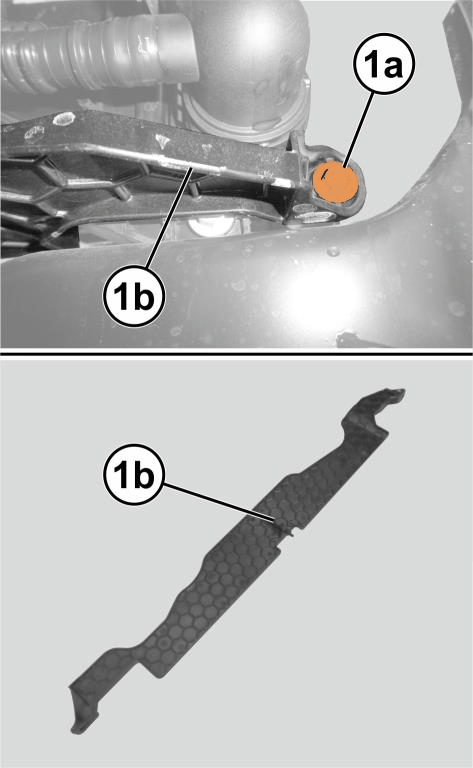

  6. Remove the bolts (1a) from both sides of the lower duct (1b) and remove.
    GC0190245Courtesy of CHRYSLER GROUP, LLC

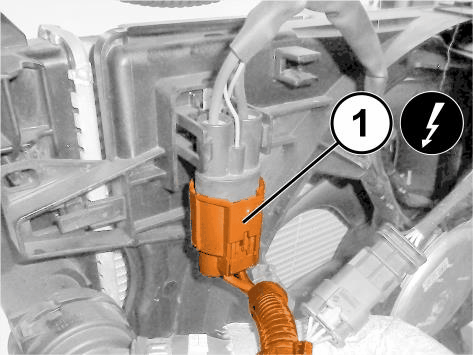

  7. Disconnect the cooling fan wire harness connector (1).
    GC0190329Courtesy of CHRYSLER GROUP, LLC

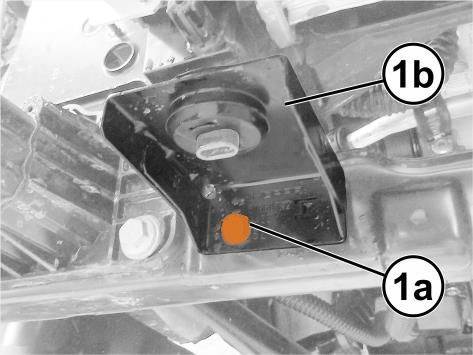

  8. Disengage the engine cooling system supply pipe (1) from the retainers on the fan shroud.
    GC0188697Courtesy of CHRYSLER GROUP, LLC
  9. Support the radiator to the vehicle.

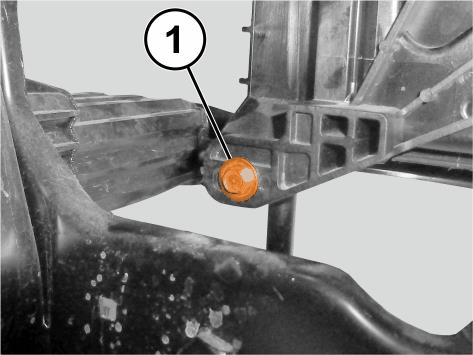

  10. Remove the bolt (1a) and both radiator support brackets (1b).
    GC0189688Courtesy of CHRYSLER GROUP, LLC
  11. Remove the bolts (1) securing the fan to the radiator.
    GC0189771Courtesy of CHRYSLER GROUP, LLC

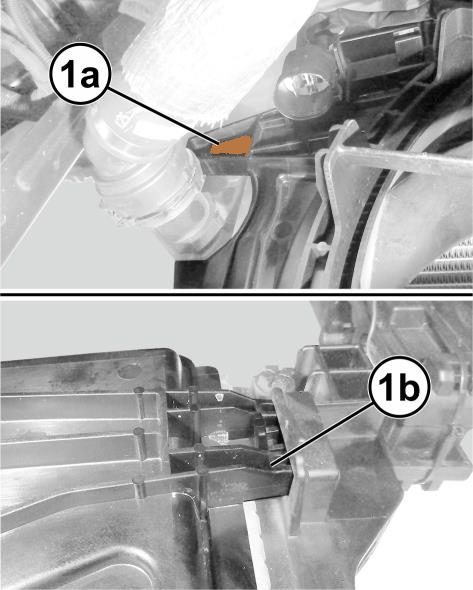

  12. Release the upper clamp (1a) and release the upper retainer (1b).
    GC0189284Courtesy of CHRYSLER GROUP, LLC

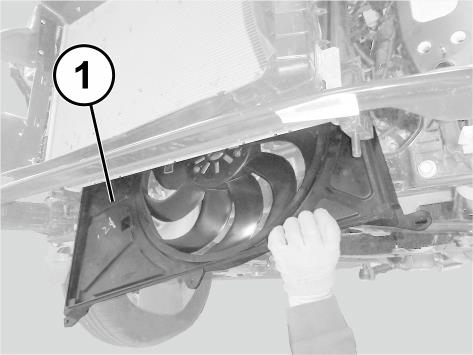

  13. Lower the cooling fan (1) and remove.
