Positive Battery

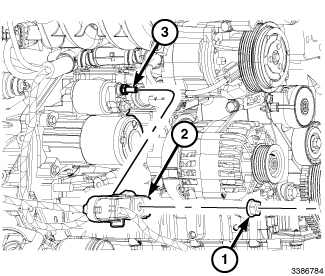

GC0153386Courtesy of CHRYSLER GROUP, LLC
  1. Connect the starter solenoid harness connector (2).
  2. Install the retainer (1) from the starter solenoid (3).
    GC0153133Courtesy of CHRYSLER GROUP, LLC
  3. Install the belly pan (1) covering the bottom side of the engine compartment.

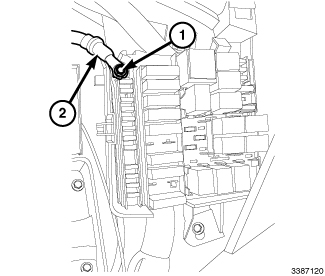

    GC0153387Courtesy of CHRYSLER GROUP, LLC
  4. Install the B+ cable (2) and install the B+ retainer (1).

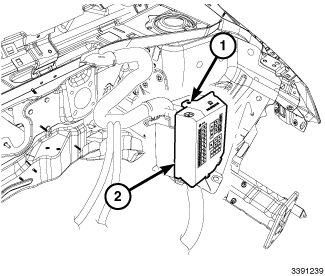

    GC0153397Courtesy of CHRYSLER GROUP, LLC
  5. Install the PDC cover (2).
  6. Install the PDC lid retainer (1).
  7. Connect the negative and positive battery cables.
