Shifter, Transmission: Installation

NOTE:

Before installing the shifter assembly, verify that the wire harness below the temperature control unit is not in the path of the shifter's slider. If contact is possible the slider may distort or fracture.

Courtesy of CHRYSLER GROUP, LLC

Install the shifter assembly in the vehicle.
NOTE:

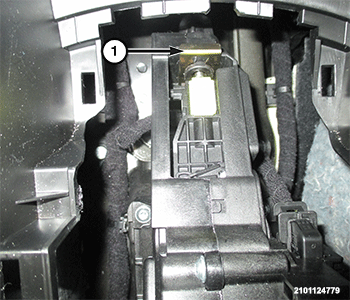

Make sure the locking retainer (1) on the gearshift cable is fully engaged after the gearshift cable is installed to the shifter housing.

Courtesy of CHRYSLER GROUP, LLC

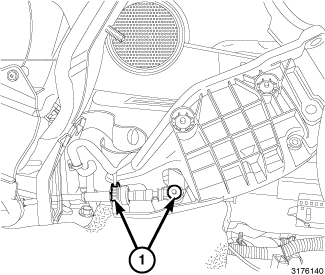

Connect the cable (1) to the shifter lever.

Courtesy of CHRYSLER GROUP, LLC

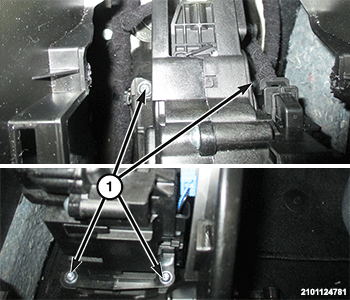

Position the shifter assembly in place, install the shifter assembly bolts (1) and tighten to 16 N.m (12 ft. lbs.).
Re-connect the electrical connection.

Courtesy of CHRYSLER GROUP, LLC

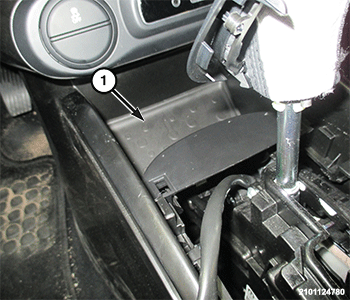

Install the trinket tray (1).

Courtesy of CHRYSLER GROUP, LLC

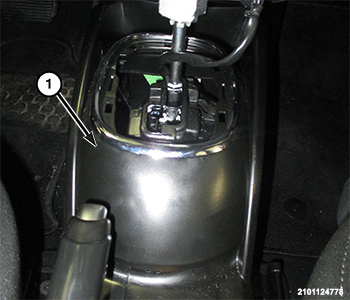

Install the shifter bezel (1).

Courtesy of CHRYSLER GROUP, LLC

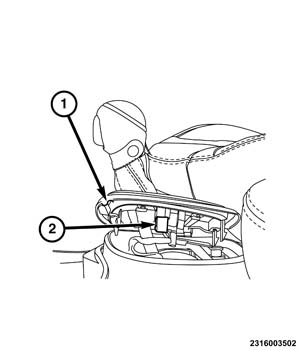

Connect the shifter bezel trim wire harness connector (2), if so equipped.

Courtesy of CHRYSLER GROUP, LLC

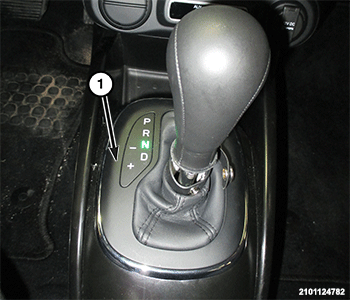

Install the shifter bezel trim (1).

Courtesy of CHRYSLER GROUP, LLC
Snap the snap fastener (1a).
Connect the negative battery cable.
Verify shifter operation and adjust cable as necessary. Refer to CABLE, SHIFT, ADJUSTMENTS .
