Second Gear Power Flow

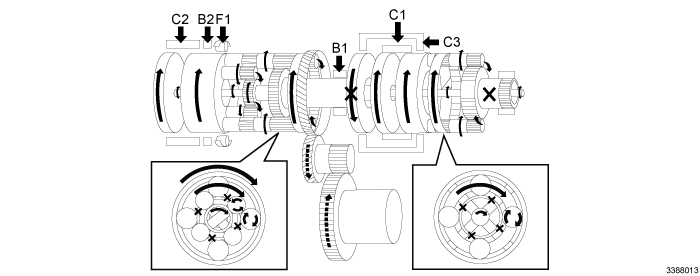

GC0153391Courtesy of CHRYSLER GROUP, LLC
SECOND GEAR

SHIFTER POSITION RANGE SOLENOID CLUTCH NUMBER BRAKE NUMBER ONE-WAY CLUTCH
SLC1 SLC2 SLC3 SLB1 S1 S2 C1 C2 C3 B1 B2 F1
D  SECOND  X X X X X - X - - X - -
X = in operation
