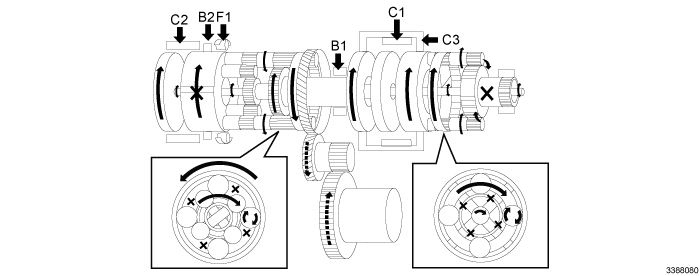

Reverse Gear Power Flow

GC0153396Courtesy of CHRYSLER GROUP, LLC
REVERSE GEAR

SHIFTER POSITION RANGE SOLENOID CLUTCH NUMBER BRAKE NUMBER ONE-WAY CLUTCH
SLC1 SLC2 SLC3 SLB1 S1 S2 C1 C2 C3 B1 B2 F1
P  PARK  - X X - X - - - - - - -
R  HIGH TORQUE  - X - - X - - - X - X -
LOW TORQUE  - X X - X X - - - - - -
X = in operation
