B2 Brake

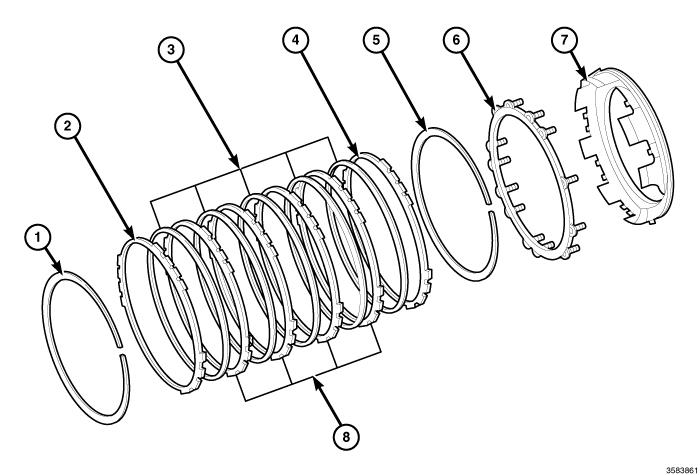

GC0153645Courtesy of CHRYSLER GROUP, LLC
1 - Snap Ring
7 - 1st and Reverse Brake Return Piston
2 - Flange
8 - Clutch Plates
3 - Clutch Discs

4 - Flange

5 - Snap Ring

6 - 1st and Reverse Brake Return Spring
