Pump, Water: Removal

  1. Drain the cooling system. Refer to DRAINING  .
  2. Remove the timing belt. Refer to BELT, TIMING, REMOVAL .
    GC0162353Courtesy of CHRYSLER GROUP, LLC

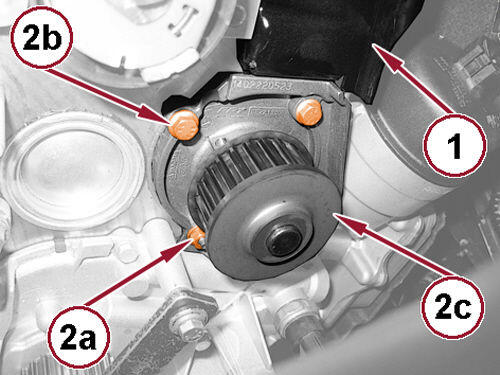

  3. Remove the bolt and the inner timing belt cover (1).
  4. Remove the nut (2a) and the three bolts (2b) securing the water pump (2c) to the engine block.
    GC0152346Courtesy of CHRYSLER GROUP, LLC

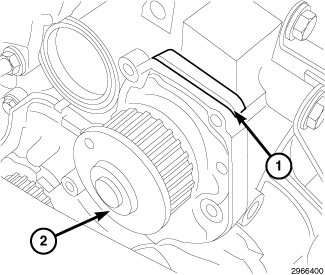

  5. Remove the water pump (2) from the engine block by lightly prying at the upper tab (1) located on the pump assembly.
