Shroud, Steering Column, Upper: Installation

Courtesy of CHRYSLER GROUP, LLC

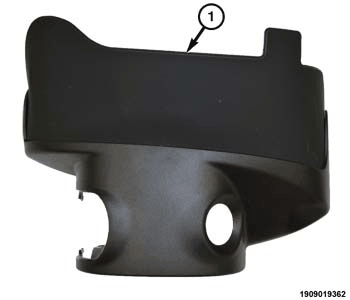

1. Install the upper column shroud (1) over the column assembly.
2. Install the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the right hidden screw (1) attaching the upper shroud to the column.

   Courtesy of CHRYSLER GROUP, LLC

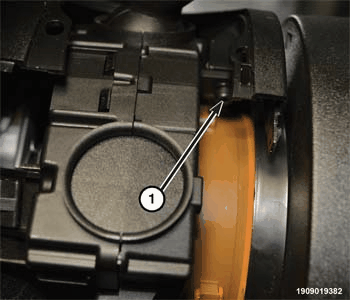

4. Install the left hidden screw (1) attaching the upper shroud to the column.
5. Install the lower shroud. Refer to SHROUD, STEERING COLUMN, LOWER, INSTALLATION  .
