Shroud, Steering Column, Lower: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Install the lower shroud (2) into the upper shroud, aligning the tabs (1) and clipping the shrouds to one another.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the screws (1, 2) attaching the lower shroud to the upper shroud and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

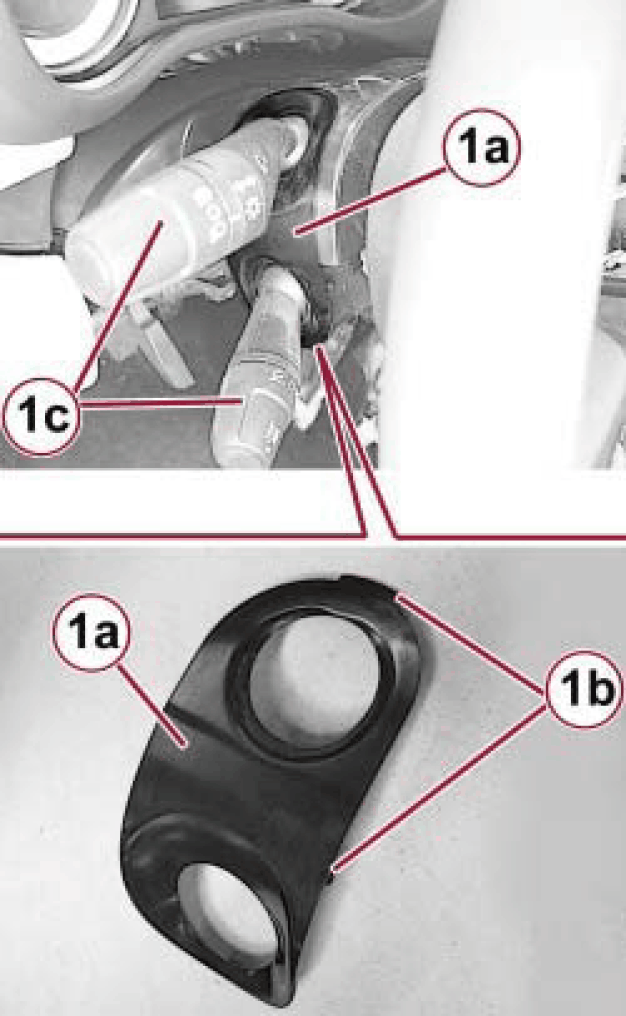

3. Using a trim stick or equivalent, engage the retaining clips (1b) and install the side cover (1a) around the lever controls (1c).
