Special Tools
WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.

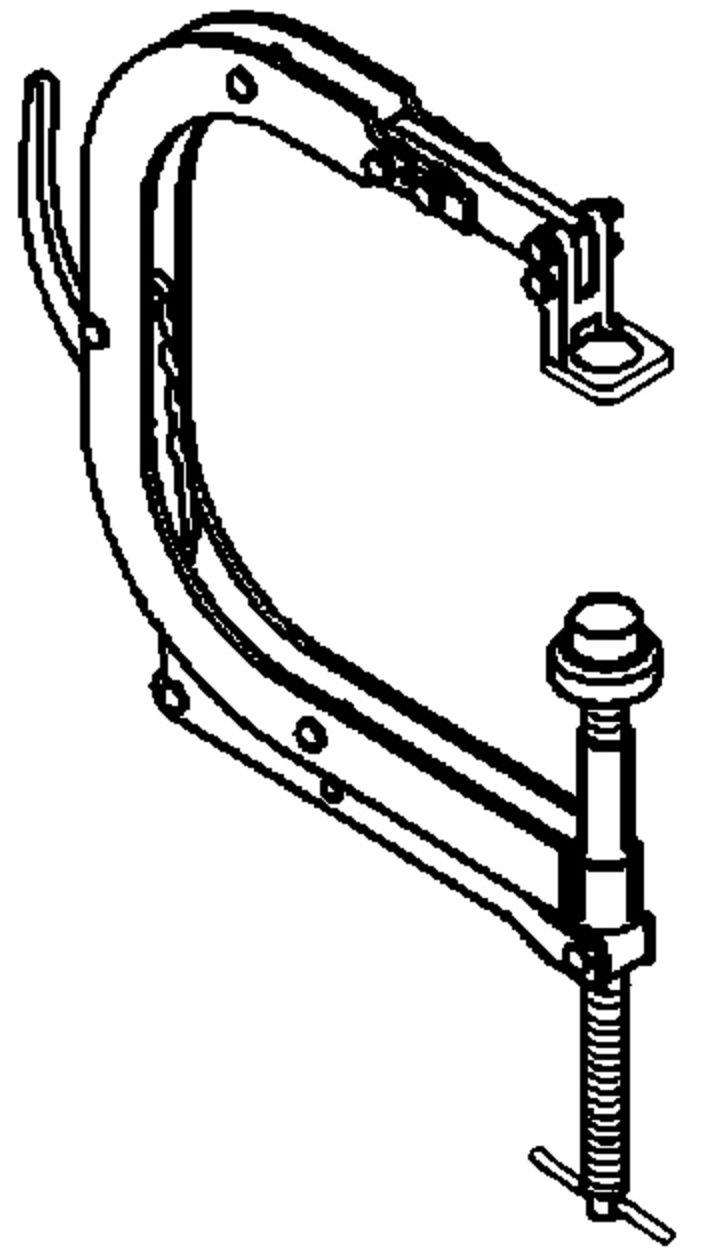

| C-3422CF - Compressor, Valve Spring (Originally Shipped In Kit Number(s) 9202, 9202-CAN.) |
|
| 10259B - Compressor, MultiAir® Spring (Originally Shipped In Kit Number(s).) |
|
| 10272 - Tool, Flywheel Locking | |
| 10288 - Pliers, Hose Clamp | |
| 1860815000 - Tool, Crankshaft Rotating (Originally Shipped In Kit Number(s).) |
|
| 2020001090 - Adapter, Multi Air Spring Compressor | |
| 2025300090 - Alignment Pins, Multiair to Cylinder Head | |
| 2027207090 - Tab, 90 Degree | |
| 2031400091 - Installer, Crank Seal - Rear | |
| 2031500091 - Installer, Crank Seal - Front | |
| 2031600091 - Pin, Centering | |
| 2063500090 - Locking, Camshaft | |
| 2063600090 - Pin, Flywheel Locking | |
| 2063700090 - Locking, Crankshaft | |
| 2064000090 - Locking, Pulley | |
| 2064200090 - Installer, Oil Nozzles | |
| 2064300090 - Calibrator, Turbo Actuator | |
| 2031300091 - Tool, Alignment Cylinder Head to Block | |
| 2066500090 - Front Crankshaft Seal Remover | |
| 2069100090 - Holder, Front Damper 3 Pin |
ENGINE PROCEDURES
| Tool (EMEA) | Tool (NAFTA) | Name | Function |
|---|---|---|---|
| 1860470000* | * | Cylinder Head Vice Fixture | 1.3L |
| 1860788000* | * | Valve Spring Compression | 1.3L |
| 1860790000* | * | Valve Spring Compression | 1.3L |
| 1860993000* | * | Valve Guide Seal Installation | 1.3L |
| 1860994000* | * | Intake Valve Guide Installation | 1.3L |
| 1870718000* | * | Oil Pan Removal | 1.3L |
| 1870894000* | * | Valve Guide Seal Removal | 1.3L |
| 1871000000* | * | Maintenance Stand | 1.3L |
| 1871001700* | * | Load-Leveling Lifting Sling | 1.3L |
| 1871008500* | * | Valve Guide Removal | 1.3L |
| 2000024700* | * | Exhaust Valve Guide Installation | 1.3L |
| 2000026800* | * | Valve Spring Compression | 1.3L |
| 2000034500 | * | Multiair Module Spring Compression | 1.3L |
| 2019500030* | * | Propeller Shaft Snap Ring Removal | 1.3L |
| 2020000091* | * | Stand-Off Adapter | 1.3L |
| 2025300091* | * | Multiair Module Positioning Pins | 1.3L |
| 2032400091* | * | Valve Retaining Tool | 1.3L |
| 2064200090* | * | Piston Oil Cooler Jet Positioning | 1.3L |
| 2066000090* | * | Valve Spring Compression | 1.3L |
| * Tool not available for NAFTA. Use a commercially available tool or contact Mopar Essential Tools to order the custom EMEA tool. | |||
