Removal And Installation: Removal
WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.
- Remove the transmission. Refer to ENGINE AND 948TE, REMOVAL
.

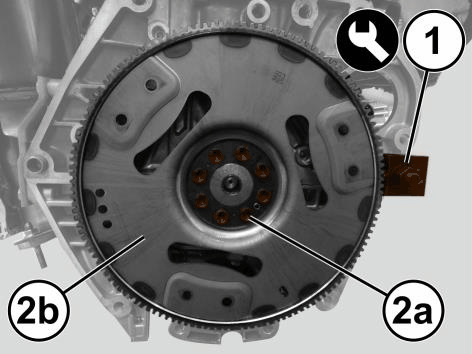

- Install the (special tool #10272, Tool, Flywheel Locking) (1).
- Remove and discard the bolts (2a) and remove the flexplate (2b).
- Remove the flywheel locking tool (1).
- Using a suitable tool clean all sealant from the bolt holes.
