Removal And Installation: Installation
WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.

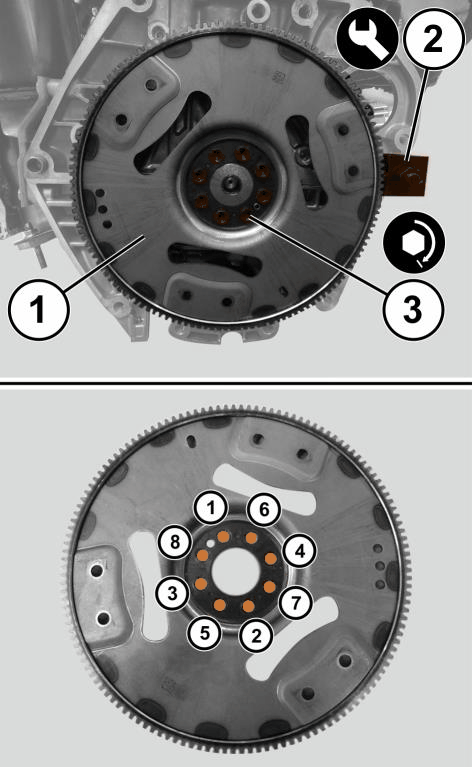

- Install the flexplate (1) and the new bolts (3) hand tight.
- Install the (special tool #10272, Tool, Flywheel Locking) (2).
- Tighten the new bolts (3) in the sequence shown, to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Remove the flywheel locking tool (2).
- Install the transmission. Refer to ENGINE AND 948TE, INSTALLATION .
