Removal And Installation: Installation

WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Propeller shaft removal is a two-person operation. Never allow propeller shaft to hang from the center bearing, or while only connected to power transfer unit (PTU) or rear driveline module flanges. A helper is required. If a propshaft section is hung unsupported, damage may occur to the joint, boot, and center bearing from over-angulation. This may result in driveline vibrations.

NOTE:

Lightly apply grease to the splines prior to installation.

GC0163742Courtesy of CHRYSLER GROUP, LLC
  1. Install a NEW  dust seal (1) on the pinion shaft of the Rear Driveline Unit (RDU).
    GC0166150Courtesy of CHRYSLER GROUP, LLC
  2. Install a NEW  dust seal (1) on the front shaft of the propeller shaft.
    GC0162973Courtesy of CHRYSLER GROUP, LLC
  3. Install a NEW  snap ring (1) in the propeller shaft.
    GC0165983Courtesy of CHRYSLER GROUP, LLC
  4. Install a NEW  snap ring (1) in the Power Transfer Unit (PTU).
    NOTE:

    Protect the propeller shaft coating with a suitable duct tape to prevent any scratches caused by the propeller shaft support tools.

  5. Position the propeller shaft on the support special tools 2000043000 and 2000043400.
    GC0164647Courtesy of CHRYSLER GROUP, LLC

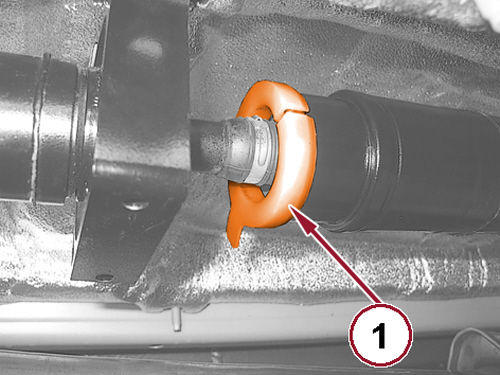

  6. Install the protective sleeve (1) at the center propeller shaft joint to protect the boot as shown in illustration.
  7. Raise the propeller shaft into the vehicle positioning the front of the shaft above the front cross member and the steering gear.
    GC0165620Courtesy of CHRYSLER GROUP, LLC
  8. Connect the propeller shaft (1) to the pinion of the RDU, verify the snap ring is seated in the groove of the pinion shaft.
    GC0165188Courtesy of CHRYSLER GROUP, LLC
  9. Position the new dust cover (1) over the joint at the rear of the propeller shaft.
    GC0166190Courtesy of CHRYSLER GROUP, LLC
  10. Loosely install the NEW  fasteners (1) for the center support bracket.
    GC0163882Courtesy of CHRYSLER GROUP, LLC
  11. Connect the propeller shaft (1) to PTU, verify the snap ring is (1) seated in the groove of the propeller shaft.
  12. Position the new dust cover (2) over the joint at the front of the propeller shaft.
    GC0165947Courtesy of CHRYSLER GROUP, LLC
  13. Tighten the center support bracket fasteners (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  14. Remove the cable ties holding the wood to the propeller shaft and remove the wood brace.
  15. Remove the tape and the protective sleeve from the propeller shaft.
    GC0164907Courtesy of CHRYSLER GROUP, LLC

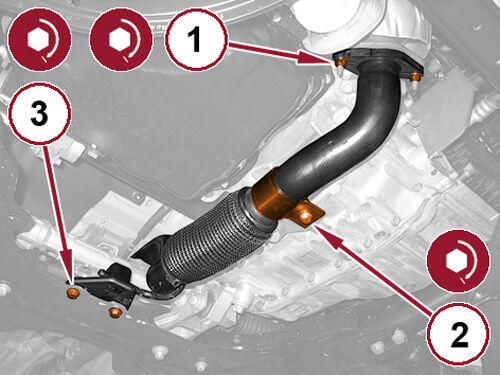

  16. Connect the crossunder pipe to the catalytic converter using a NEW  flange gasket and tighten the NEW  fasteners (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  17. Install the crossunder pipe bracket fastener (2) to the engine and tighten to the proper specification.

    Refer to TECHNICAL SPECIFICATIONS .

  18. Install the crossunder pipe front hanger support bracket fasteners (3) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0166017Courtesy of CHRYSLER GROUP, LLC

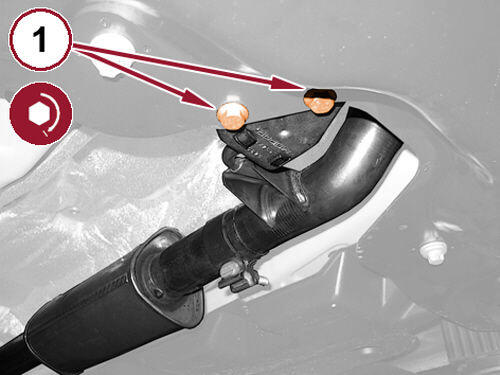

  19. Install the fasteners (1) securing the rear exhaust hanger bracket supporting the crossunder pipe at the front crossmember and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  20. Install the propeller shaft skid plate and tighten the fasteners.
  21. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
