Outlet, Power, Universal Serial Bus: Removal

  1. Disconnect and isolate the negative battery cable.

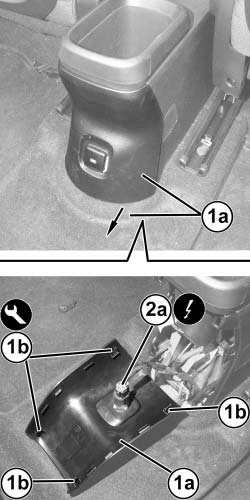

    GC0184203Courtesy of CHRYSLER GROUP, LLC
  2. Using an appropriate tool release the front floor console rear cover (1a) retainers (1b) then disconnect the electrical connector.
    GC0184295Courtesy of CHRYSLER GROUP, LLC
  3. Remove USB charge port (1c) from front floor console rear cover (1a) by releasing the retainers (1b).
