Removal And Installation: Installation

WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

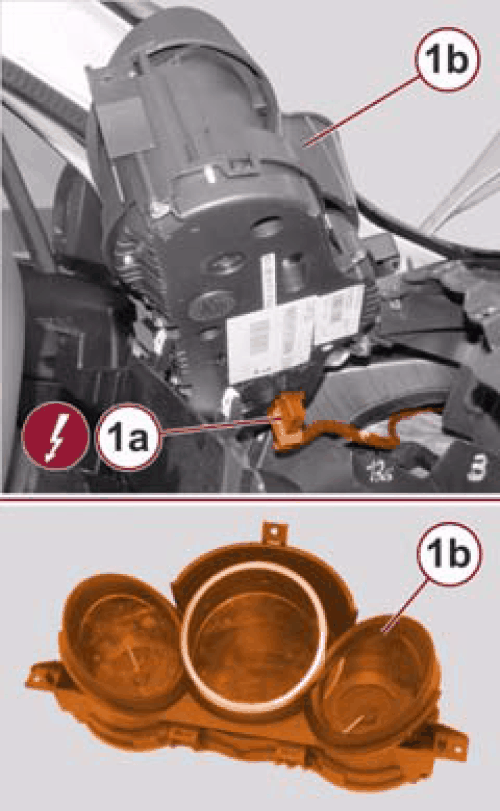

Position the IPC (1b) to the instrument panel and connect the instrument panel wire harness connector (1a).

Courtesy of CHRYSLER GROUP, LLC

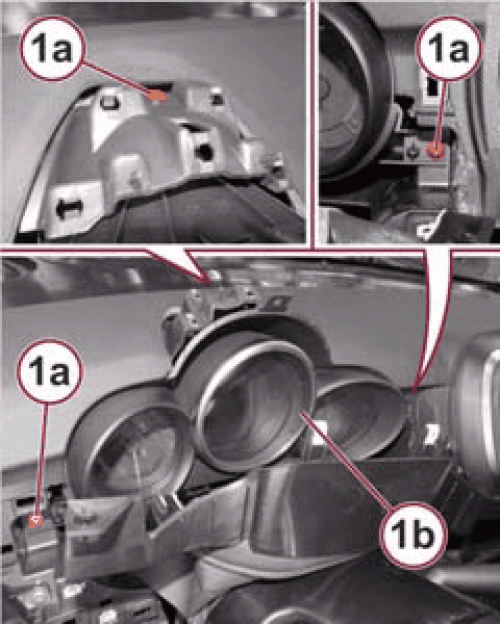

Install the three screws (1a) for the IPC (1b).

Courtesy of CHRYSLER GROUP, LLC

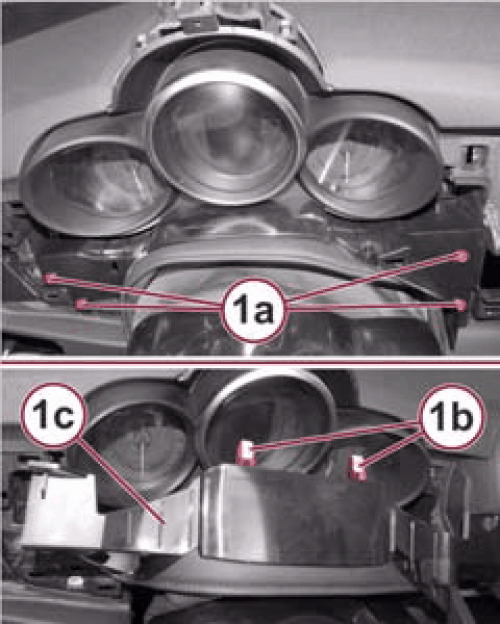

Position the steering column shroud gap hider (1c) and install the four screws (1a).

Courtesy of CHRYSLER GROUP, LLC
Install the driver side instrument panel trim panel (1b). Be certain all of the retainers are fully engaged with the instrument panel.

Courtesy of CHRYSLER GROUP, LLC

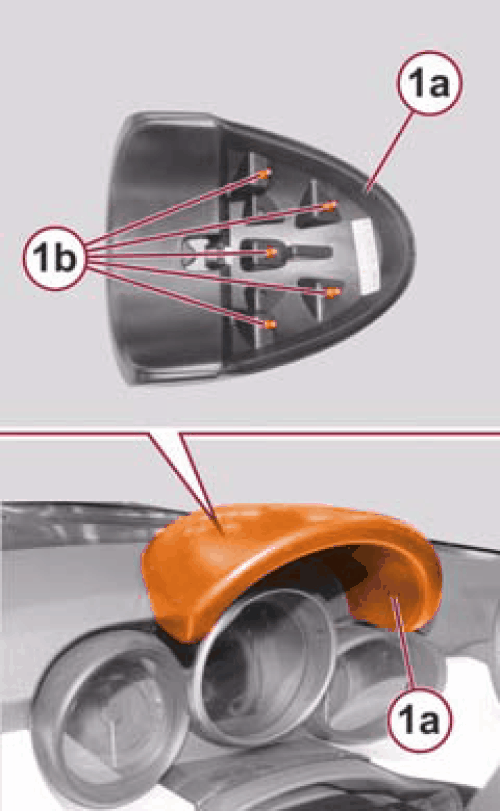

Position the instrument cluster hood (1a) and hand tap to engage the retaining tabs (1b).

Courtesy of CHRYSLER GROUP, LLC

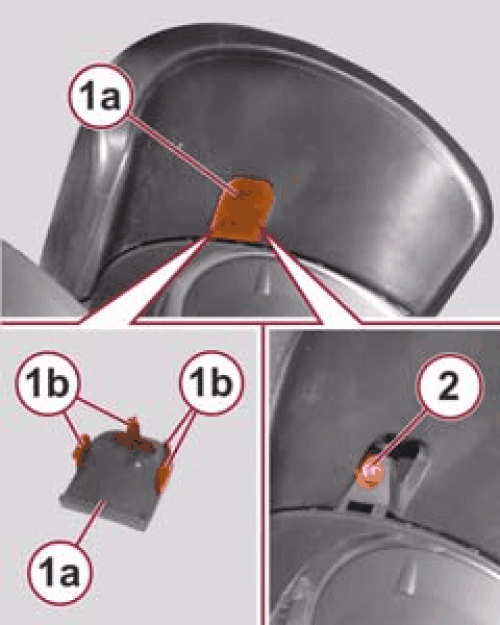

Install the screw (2) and tighten securely. Install the screw cover (1a).

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
