Battery To Generator Cable

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
3. Remove the Powertrain Control Module (PCM) bracket. Refer to MODULE, POWERTRAIN CONTROL (PCM), REMOVAL AND INSTALLATION .
4. Remove the throttle body air intake hose. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
5. If equipped with a manual transmission, remove the gear shifter. Refer to LEVER, SHIFT, REMOVAL AND INSTALLATION .
6. If equipped with a manual transmission, remove the propeller shaft. Refer to REMOVAL AND INSTALLATION .
7. If equipped with a manual transmission, remove the crossmember. Refer to CROSSMEMBER, TRANSMISSION, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

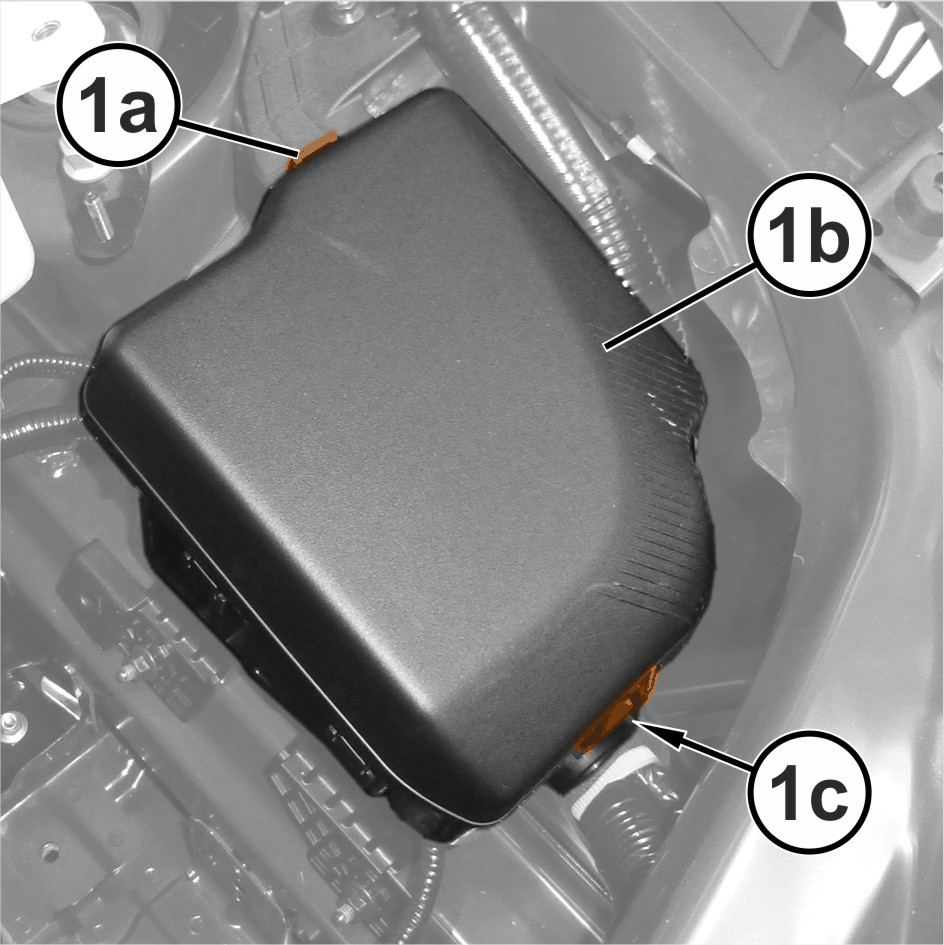

8. Push the retainer (1a), lift and remove the Power Distribution Center (PDC) cover (1b) by releasing the cover retainer (1c).

   Courtesy of CHRYSLER GROUP, LLC

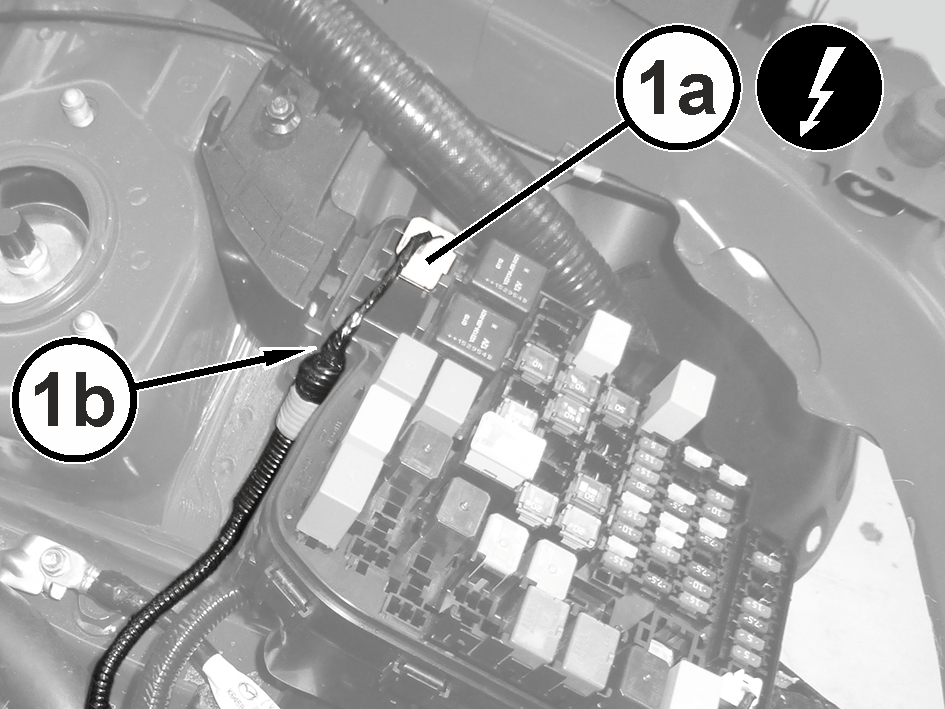

9. Disconnect the electrical connection (1a) and release the wiring from the retainer (1b).

   Courtesy of CHRYSLER GROUP, LLC

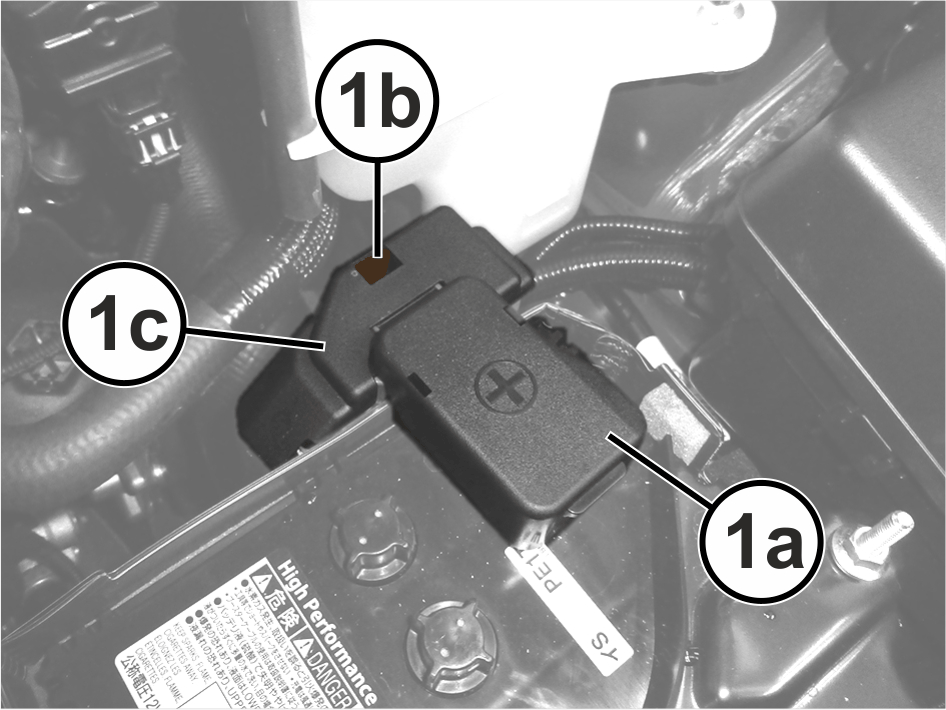

10. Remove the cover (1a), release the clip (1b) and remove the battery positive terminal (1c) cover.

    Courtesy of CHRYSLER GROUP, LLC

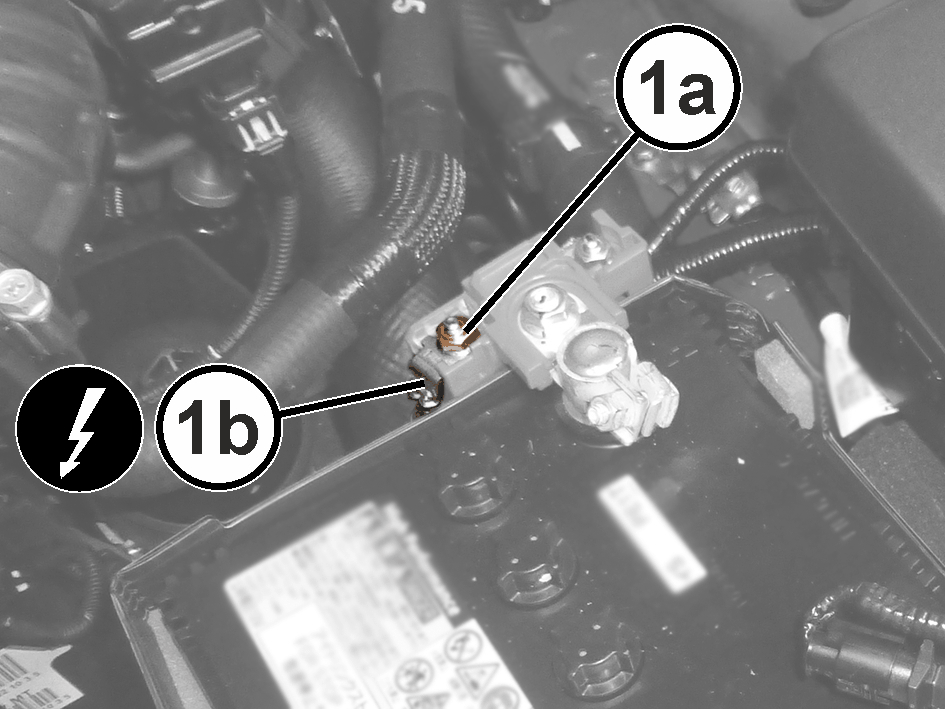

11. Remove the nut (1a) and disconnect the wiring (1b) from the battery positive terminal.

    Courtesy of CHRYSLER GROUP, LLC

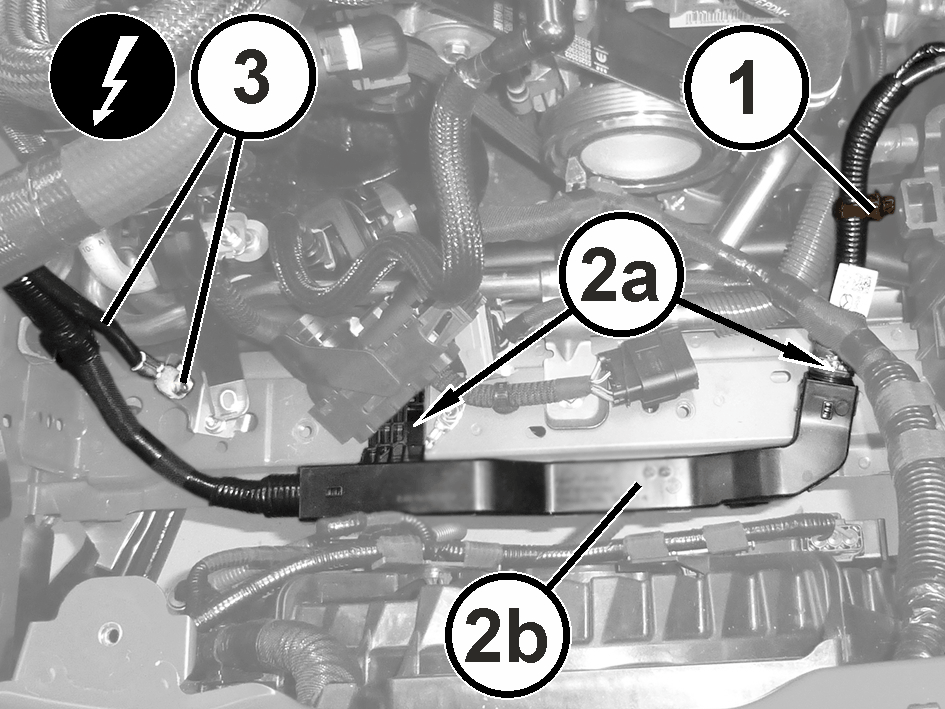

12. Release the wiring retaining clip (1) to the battery case.
13. Release the wiring duct (2b) retainers (2a).
14. Remove the screw and disconnect the ground lead (3).

    Courtesy of CHRYSLER GROUP, LLC

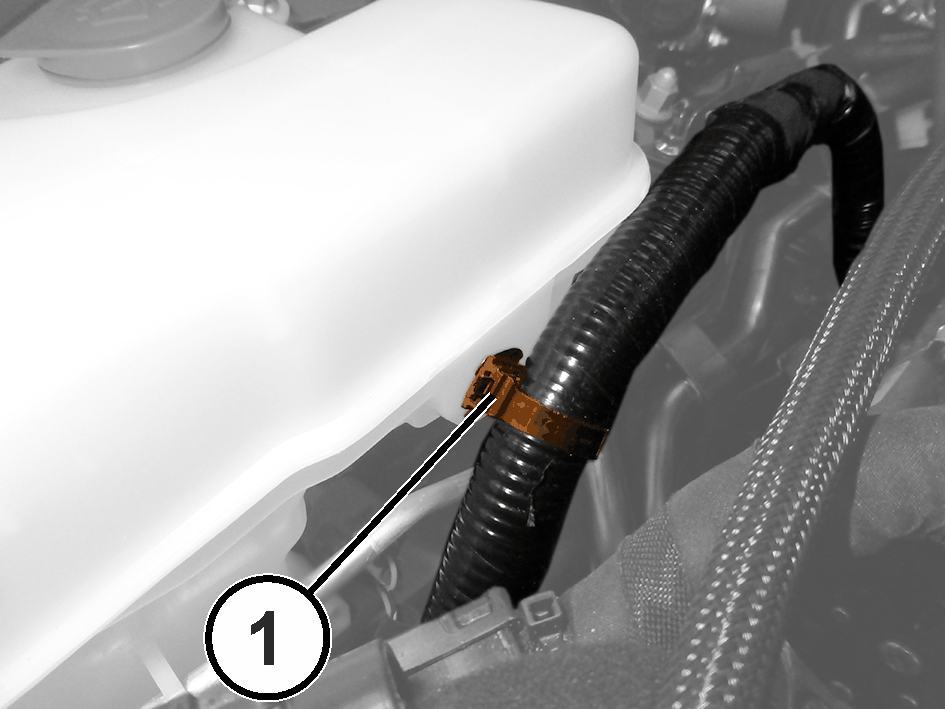

15. Release the wiring retaining clip located on the windshield washer fluid reservoir.

    Courtesy of CHRYSLER GROUP, LLC

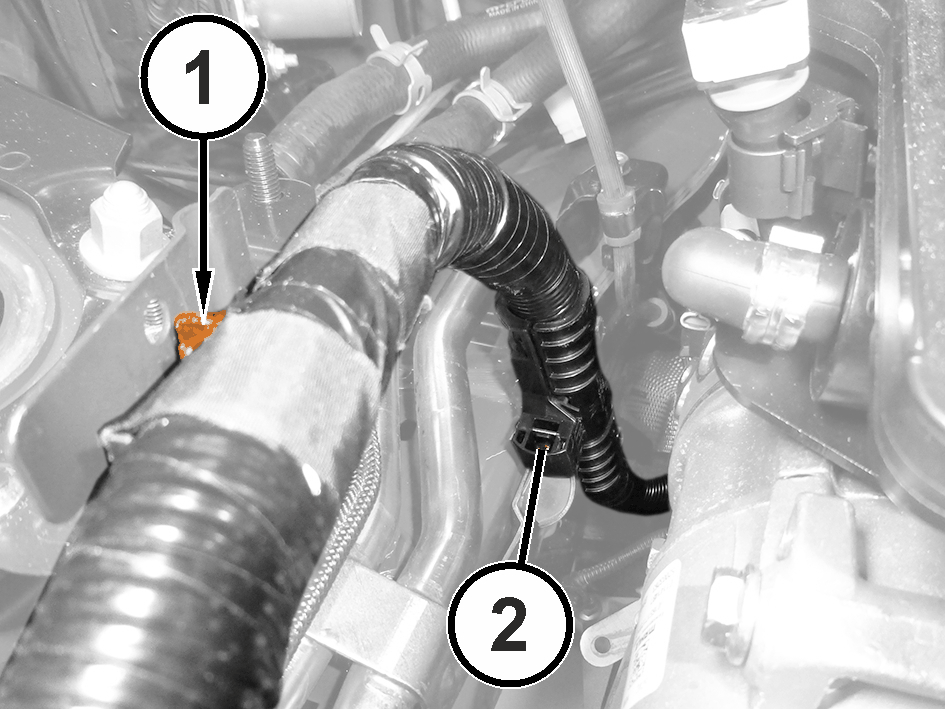

16. Release the clip retaining the charging wiring to the shock absorber upper attachment bracket.
17. Release the clip retaining the charging wiring on the supply and return hoses (duplex) upper bracket between the engine and the heater.

    Courtesy of CHRYSLER GROUP, LLC

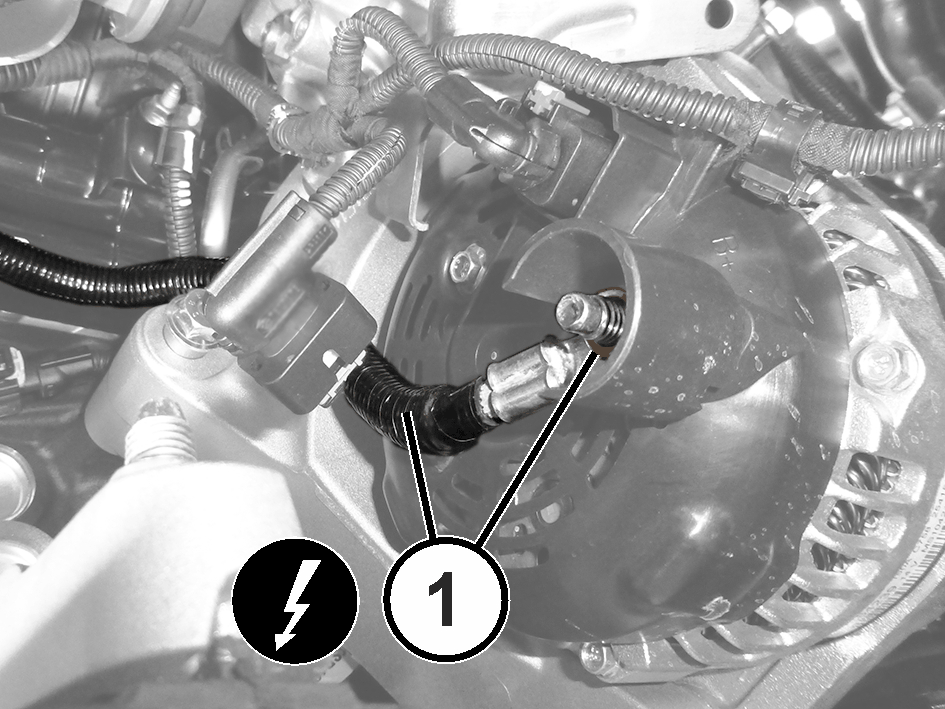

18. Remove the nut (1) and disconnect power lead from generator.

    Courtesy of CHRYSLER GROUP, LLC

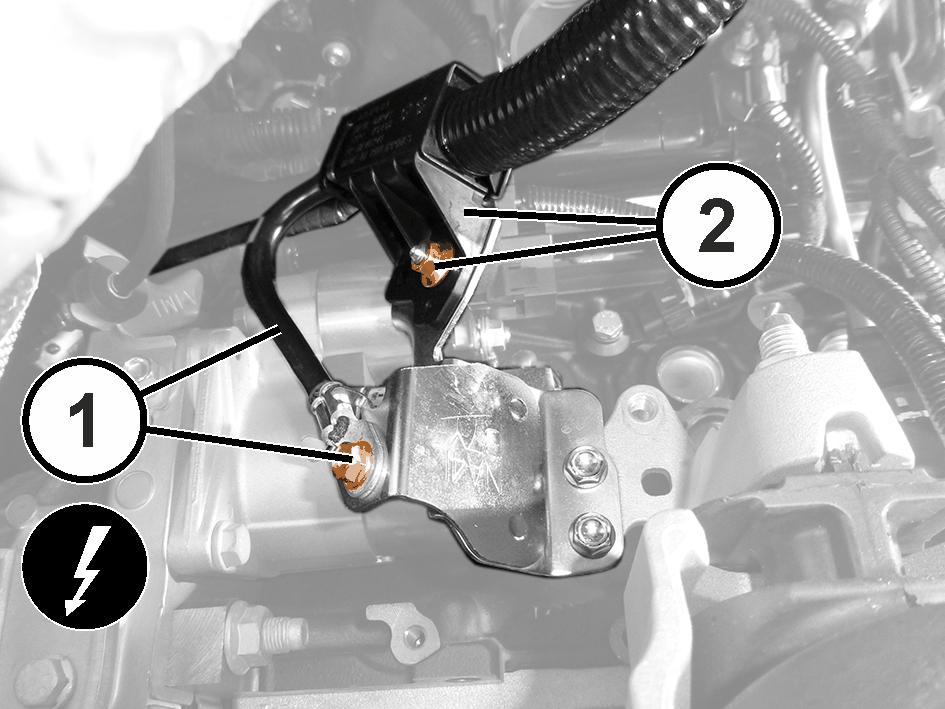

19. Remove the screw (1) and disconnect the ground lead.
20. Remove the nut (2) and move aside the wiring retainer.

    Courtesy of CHRYSLER GROUP, LLC

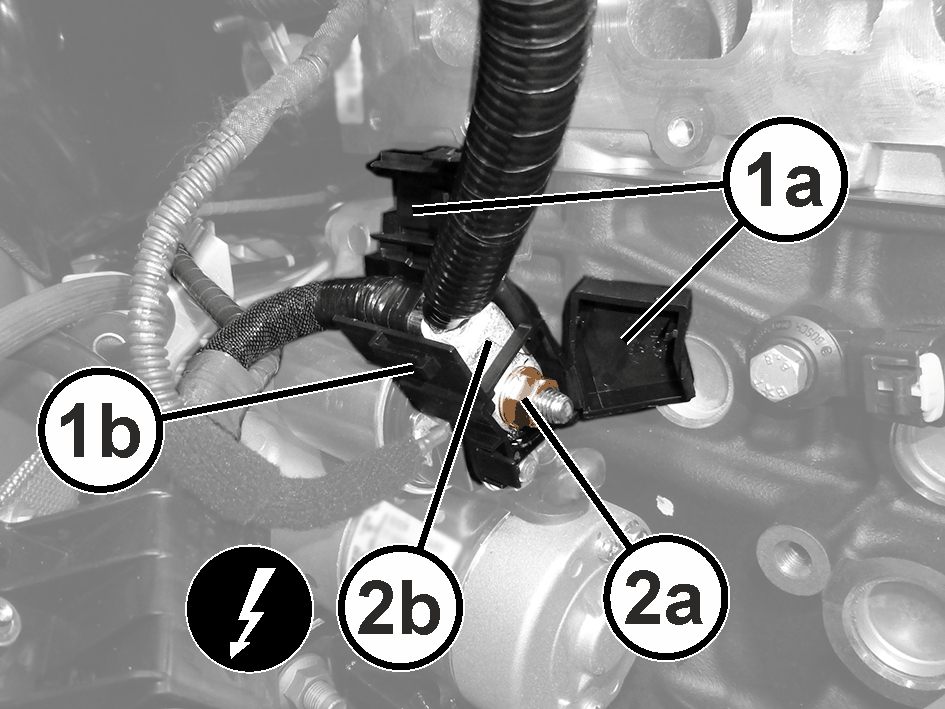

21. Open the wiring protection (1b) protection covers (1a).
22. Remove the nut (2a) and disconnect the power lead (2b) from the starter.

    Courtesy of CHRYSLER GROUP, LLC

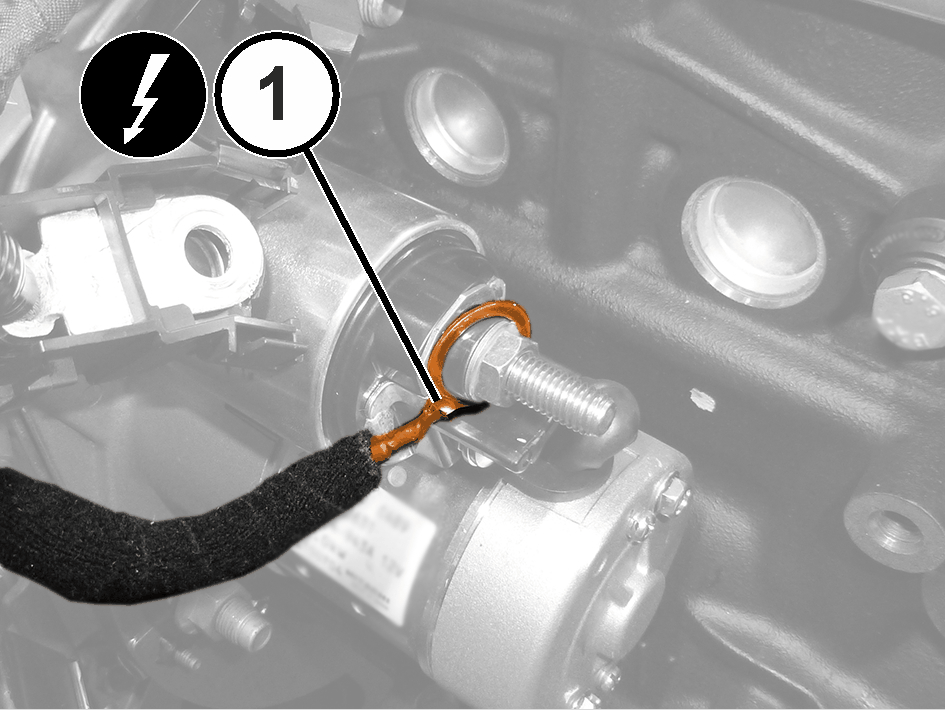

23. Disconnect the warning harness lead (1) from the starter motor.
24. If equipped with an automatic transmission, remove the wiring from battery to the generator or if equipped with a manual transmission, partially lower the rear area of the gearbox in order to access the wiring fastenings and disconnect the neutral position sensor electrical connection.

INSTALLATION

1. Connect the warning harness lead to the starter motor.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the power lead to the starter and tighten the nut to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the nut (2a) and connect the power lead (2b) to the starter and tighten to the. Refer to TECHNICAL SPECIFICATIONS .
4. Close the wiring protection (1b) protection covers (1a).

   Courtesy of CHRYSLER GROUP, LLC

5. Install the nut (2) onto the wiring retainer and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
6. Connect the ground lead and tighten the screw (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

7. Connect power lead to the generator and tighten the nut (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

8. Install the clip retaining the charging wiring on the supply and return hoses (duplex) upper bracket between the engine and the heater.
9. Install the clip retaining the charging wiring to the shock absorber upper attachment bracket.

   Courtesy of CHRYSLER GROUP, LLC

10. Install the wiring retaining clip located on the windshield washer fluid reservoir.

    Courtesy of CHRYSLER GROUP, LLC

11. Connect the ground lead (3) and tighten the screw to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
12. Install the wiring duct (2b) retainers (2a).
13. Install the wiring retaining clip (1) to the battery case.

    Courtesy of CHRYSLER GROUP, LLC

14. Connect the wiring harness connector (1b) to the battery positive terminal and tighten the nut (1a) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

    Courtesy of CHRYSLER GROUP, LLC

15. Install the battery positive terminal (1c) cover and close the clip (1b) and cover (1a).

    Courtesy of CHRYSLER GROUP, LLC

16. Install the wiring onto the retainer (1b) and connect the electrical connection (1a).

    Courtesy of CHRYSLER GROUP, LLC

17. Install the Power Distribution Center (PDC) cover.
18. If equipped with a manual transmission, install the crossmember. Refer to CROSSMEMBER, TRANSMISSION, REMOVAL AND INSTALLATION .
19. If equipped with a manual transmission, install the propeller shaft. Refer to REMOVAL AND INSTALLATION .
20. If equipped with a manual transmission, install the gear shifter. Refer to LEVER, SHIFT, REMOVAL AND INSTALLATION .
21. Install the throttle body air intake hose. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
22. Install the Powertrain Control Module (PCM) bracket. Refer to MODULE, POWERTRAIN CONTROL (PCM), REMOVAL AND INSTALLATION .
23. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
24. Connect the negative battery cable.
