Fuel Level Gauge For Submerged Pump Assembly

REMOVAL

1. Remove the fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

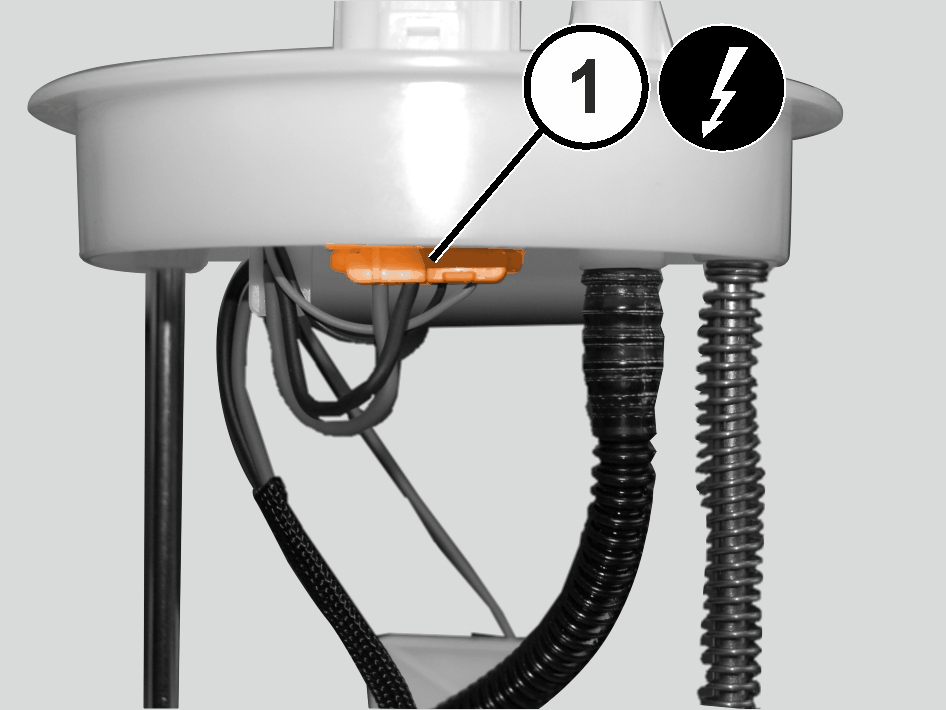

2. Disconnect the electrical connections (1).

   Courtesy of CHRYSLER GROUP, LLC

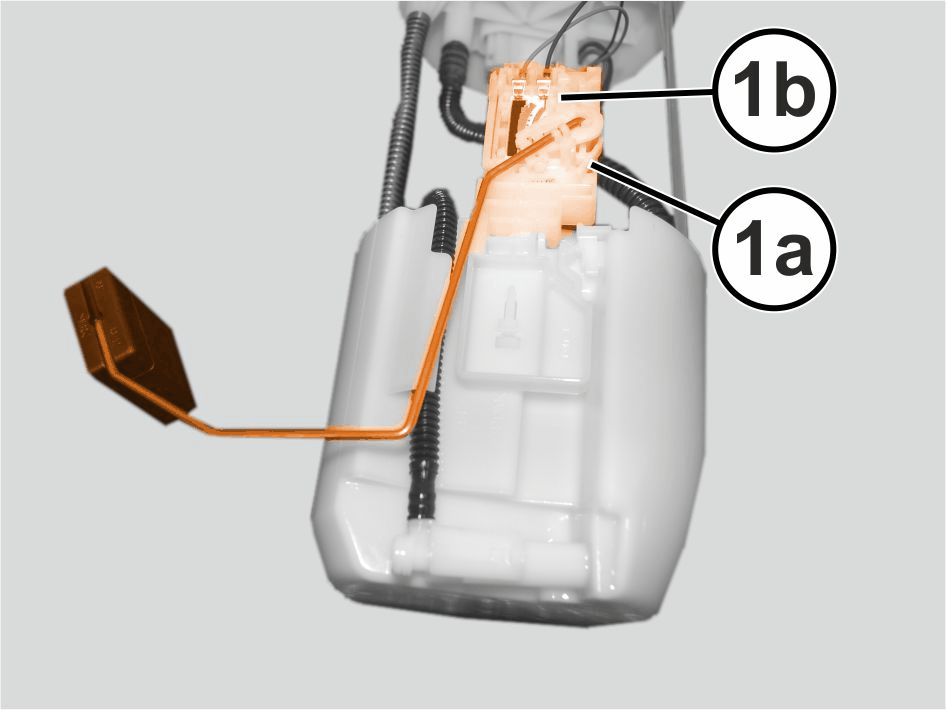

3. Lift the tab (1a) and remove the connector plate together with the float (1b).

INSTALLATION

1. Place the connector plate together with the float in its housing.
2. Install the fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL AND INSTALLATION .
