Removal And Installation

REMOVAL

1. Remove the battery. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .

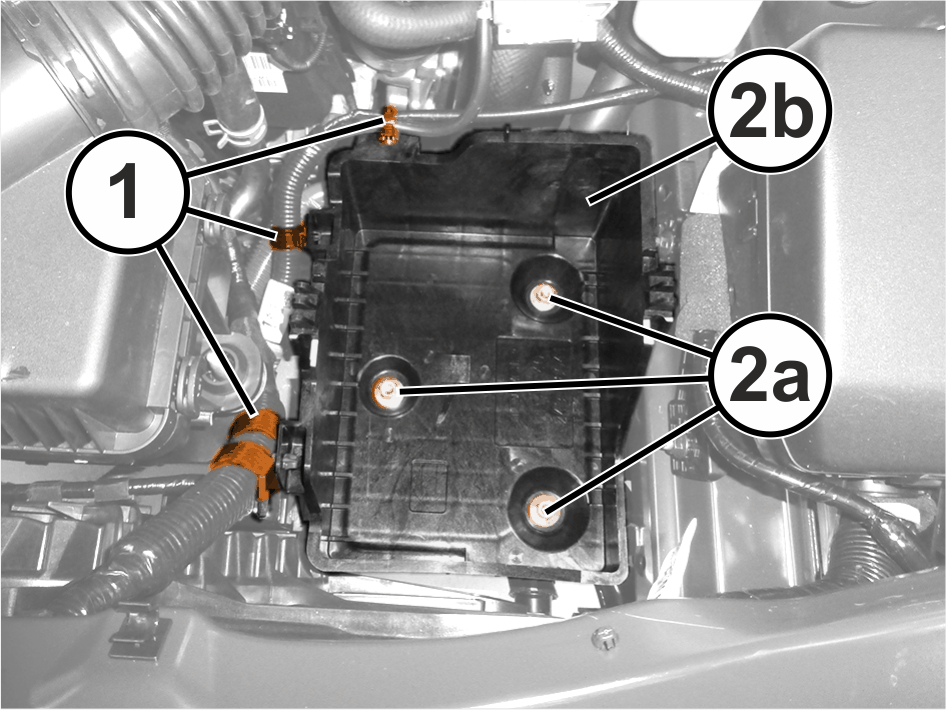

   Courtesy of CHRYSLER GROUP, LLC

2. Release the wiring from the wiring retainer clips (1).
3. Remove the bolts (2a).
4. Remove the battery tray (2b).

INSTALLATION

1. Install the battery tray and tighten the bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
2. Position and secure the wiring to the wiring retainer clips.
3. Install the battery. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
