Steering System: Gear: Removal

GC0158840Courtesy of CHRYSLER GROUP, LLC
  1. Using a steering wheel holder, lock the steering wheel in place to keep it from rotating. This keeps the clockspring in the proper orientation.
  2. Remove pinch bolt (2) and separate intermediate shaft (1) from steering gear shaft.
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  4. Remove the wheel mounting bolts, then the tire and wheel assembly.
    GC0152558Courtesy of CHRYSLER GROUP, LLC
  5. Remove the nut (2) and pinch bolt clamping the ball joint stud (1) to the knuckle (3).
  6. Remove the nut (4) attaching the outer tie rod (5) to the knuckle (3).
    GC0083850Courtesy of CHRYSLER GROUP, LLC
  7. On each side of the steering gear, separate the tie rod end (3) from the knuckle (2) using (special tool #9360, Remover, Ball Joint) (1) or equivalent.
  8. If equipped, remove the engine belly pan.

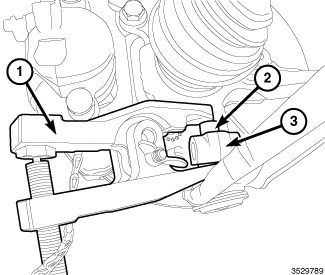

    GC0153598Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Use care when separating the ball joint stud (2) from the knuckle (3), so the ball joint seal does not get cut or compressed excessively.

  9. Using (special tool #9360, Remover, Ball Joint) (1), separate the ball joint stud (2) from the knuckle (3).
    GC0157948Courtesy of CHRYSLER GROUP, LLC
  10. At each end of the stabilizer bar, while holding the stabilizer bar link lower stud stationary, remove the nut (2) securing the link to the stabilizer bar.
    GC0152406Courtesy of CHRYSLER GROUP, LLC
  11. Remove the rear engine isolator. Refer to INSULATOR, ENGINE MOUNT, REAR, REMOVAL .
  12. Remove the exhaust pipe. Refer to MUFFLER, EXHAUST, REMOVAL .
    GC0152449Courtesy of CHRYSLER GROUP, LLC
  13. Remove four bolts (1) and the tunnel support brace (2).
    GC0158918Courtesy of CHRYSLER GROUP, LLC
  14. Remove the retaining clip and shift cables (1) from the steering rack.

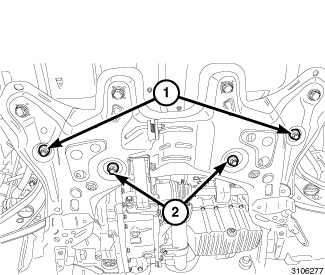

    GC0152759Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The steering gear bolts (2) must be removed before attempting to lower the front crossmember so that the crossmember can be moved rearward to disengage it from the front support beams. If the steering gear mounting bolts are not removed before trying to move the crossmember rearward, the steering gear pinion shaft will hit the body.

  15. Remove steering gear bolts (2).
    NOTE:

    Before removing the front suspension crossmember from the vehicle, the location of the crossmember must be marked on the body of the vehicle. Do this so the crossmember can be relocated, upon reinstallation, against the body of vehicle in the same location as before removal. If the front suspension crossmember is not reinstalled in exactly the same location as before removal, the preset front wheel alignment settings (caster and camber) may be lost.

    GC0152758Courtesy of CHRYSLER GROUP, LLC
  16. Mark the location of the front crossmember on the body near each mounting bolt using a marker or crayon.
  17. Remove the bolts securing the stabilizer bushing retainers to the crossmember and discard the bolts.
  18. Support the front crossmember with a transmission jack.
  19. Remove the four mounting bolts (2) securing the front crossmember to the body.
  20. Remove the two bolts (1, 3) securing the front crossmember to the body.
  21. Move the jack and crossmember rearward to disengage the crossmember from the front support beams.
  22. Slowly lower the crossmember until there is enough space present to remove the steering gear between the crossmember and the body.
  23. Remove the steering gear from the crossmember.
