Tray, Battery: Installation

Courtesy of CHRYSLER GROUP, LLC

Install the battery tray (3) with one nut (5) and two bolts (1). Tighten all three fasteners to 25 N.m (18 ft. lbs.).
Engage the engine wire harness connector (2) to the battery tray (3).
Engage two engine wire harness retainers (4) to the battery tray (3).
Engage two starter wire harness retainers (6) to the battery tray (3).

Courtesy of CHRYSLER GROUP, LLC
Connect the powertrain control module (PCM) electrical connectors (1 and 2).

Courtesy of CHRYSLER GROUP, LLC

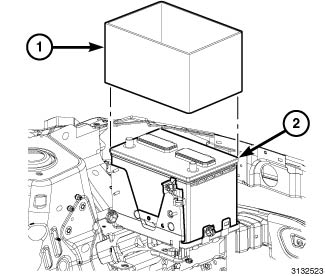

Install the battery (2). Refer to BATTERY, INSTALLATION .
