Removal And Installation: Removal

  1. Remove the front strut. Refer to STRUT, SUSPENSION, ASSEMBLY, REMOVAL AND INSTALLATION .

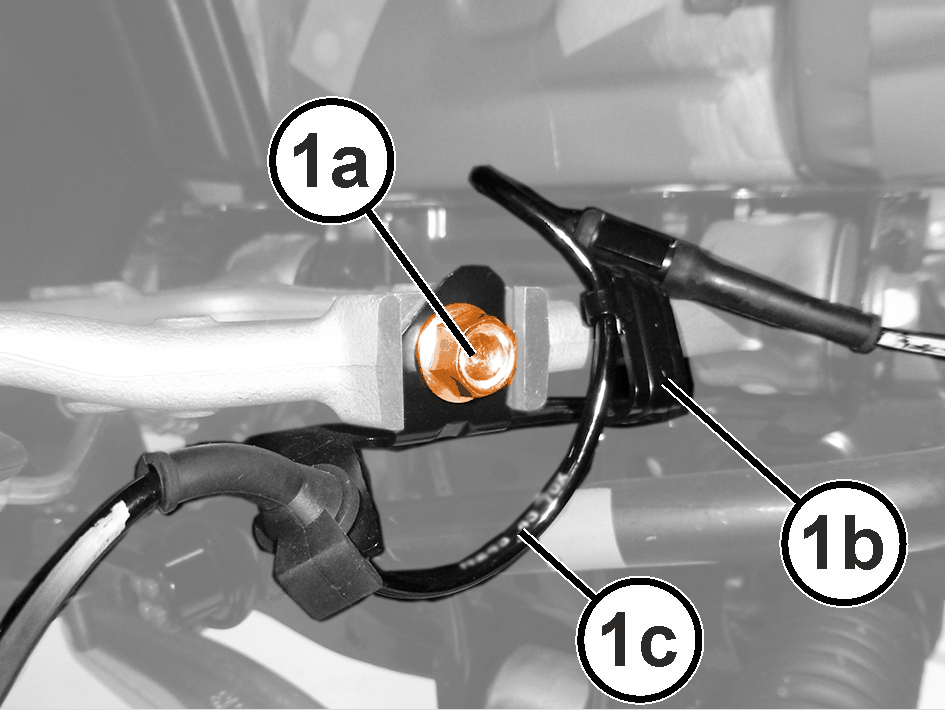

    GC0176475Courtesy of CHRYSLER GROUP, LLC
  2. Remove the retaining bolt (1a) and position the retaining bracket (1b) aside for from the ABS sensor wiring (1c).

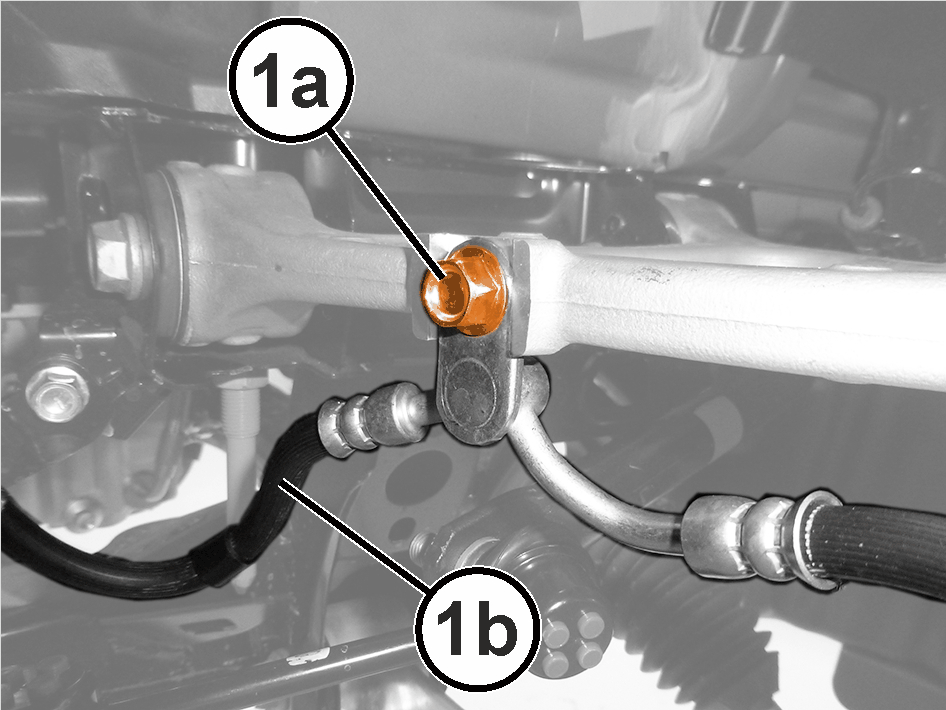

    GC0175856Courtesy of CHRYSLER GROUP, LLC
  3. Remove the retaining bolt (1a) and remove the flexible brake line (1b) from the upper control arm.

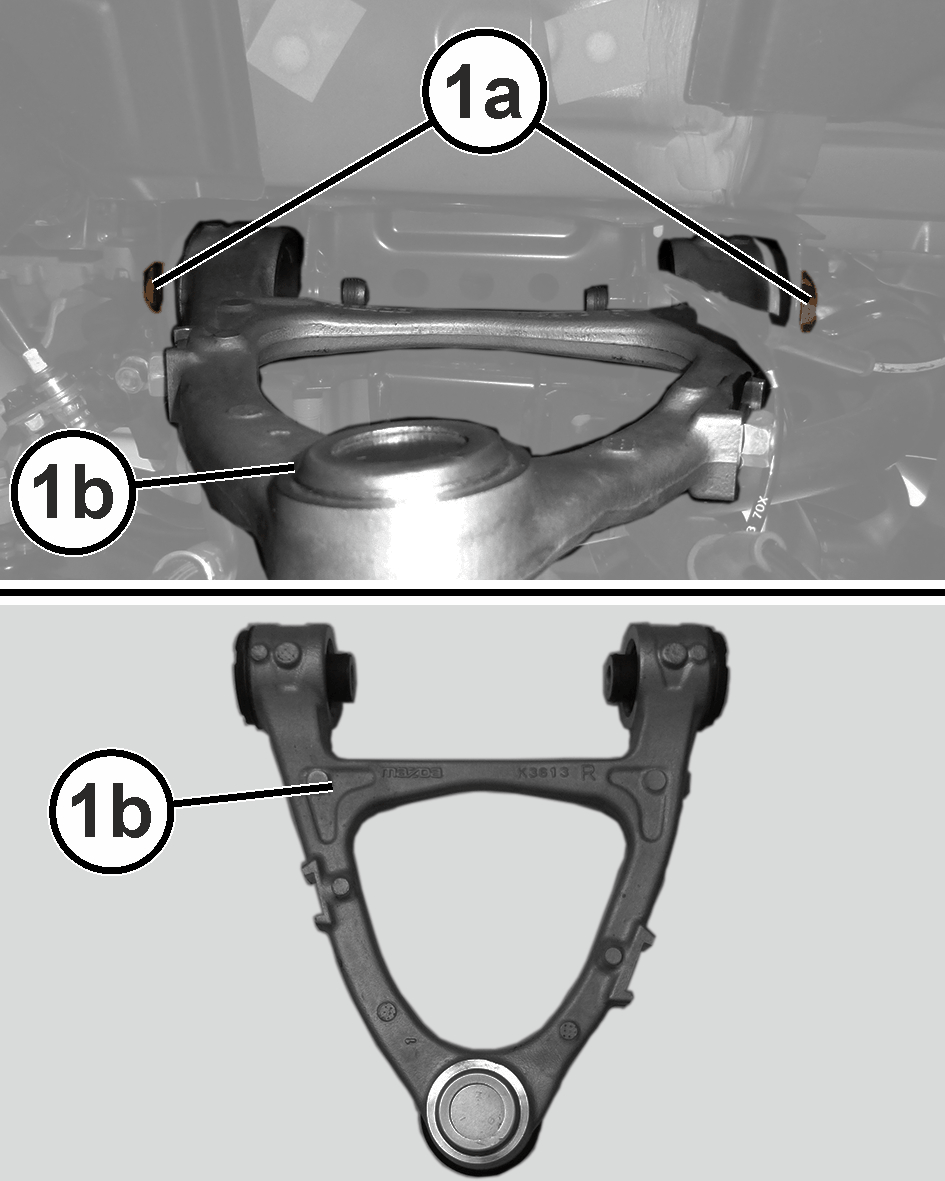

    GC0176376Courtesy of CHRYSLER GROUP, LLC
  4. Remove the mounting bolts (1a) and remove the upper control arm (1b) from the vehicle.
