Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
  3. Remove the right front wheel.
  4. Remove the air induction tube from throttle body to intercooler hose. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .

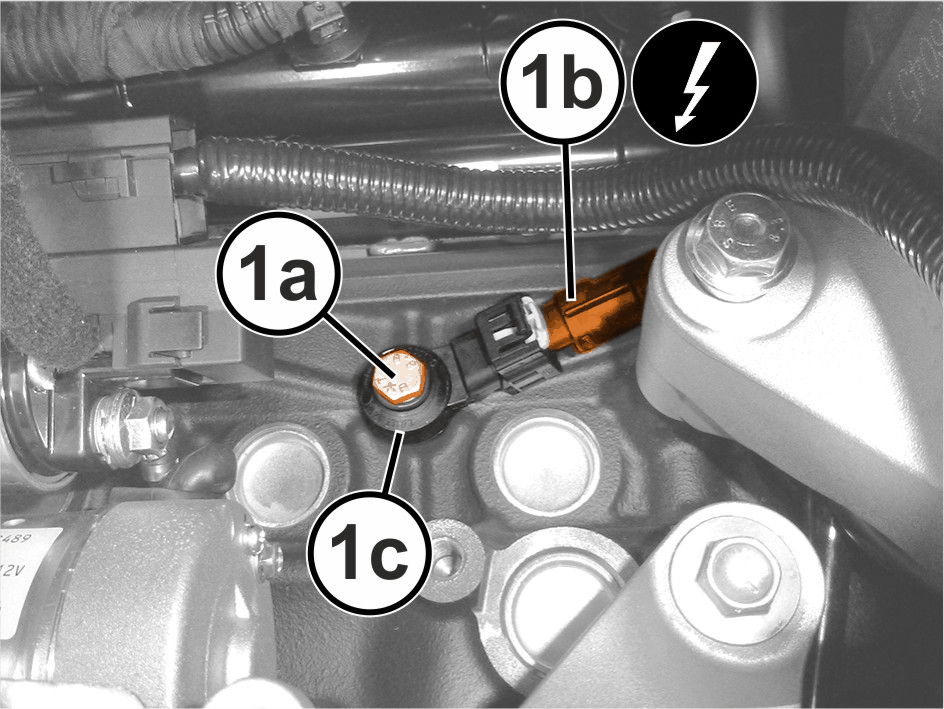

    GC0176047Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the knock sensor electrical connector (1b).
  6. Remove the screw (1a) and remove the knock sensor (1c).
