Removal And Installation: Installation

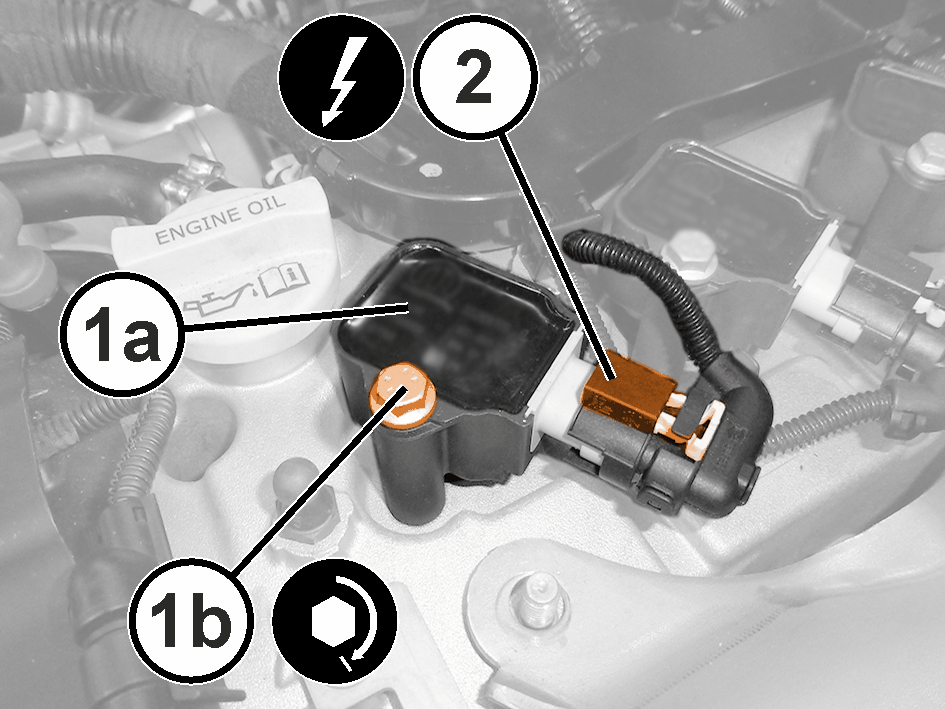

1. Seat the ignition coil (1a) and tighten the screw (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
2. Connect the electrical connector (2) to the ignition coils.
3. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC
