Coil, Ignition: Installation

GC0152375Courtesy of CHRYSLER GROUP, LLC
  1. Using compressed air, blow out any dirt or contaminants from around the top of spark plug.
  2. The ignition coil seal (1) can be reused if not damaged.
  3. Check the condition of the ignition coil rubber boot (2). To aid in ignition coil installation, apply a silicone based grease such as Mopar® Dielectric Grease # J8126688 into the spark plug end of the rubber boot (3).
    GC0157782Courtesy of CHRYSLER GROUP, LLC
  4. Position the ignition coil (3) into the cylinder head cover opening. Using a twisting action, push the ignition coil onto the spark plug.
  5. Install the ignition coil mounting bolt (2) and tighten to 9 Nm (80 in. lbs).
  6. Connect and lock the electrical connector (3) to the ignition coil (1).

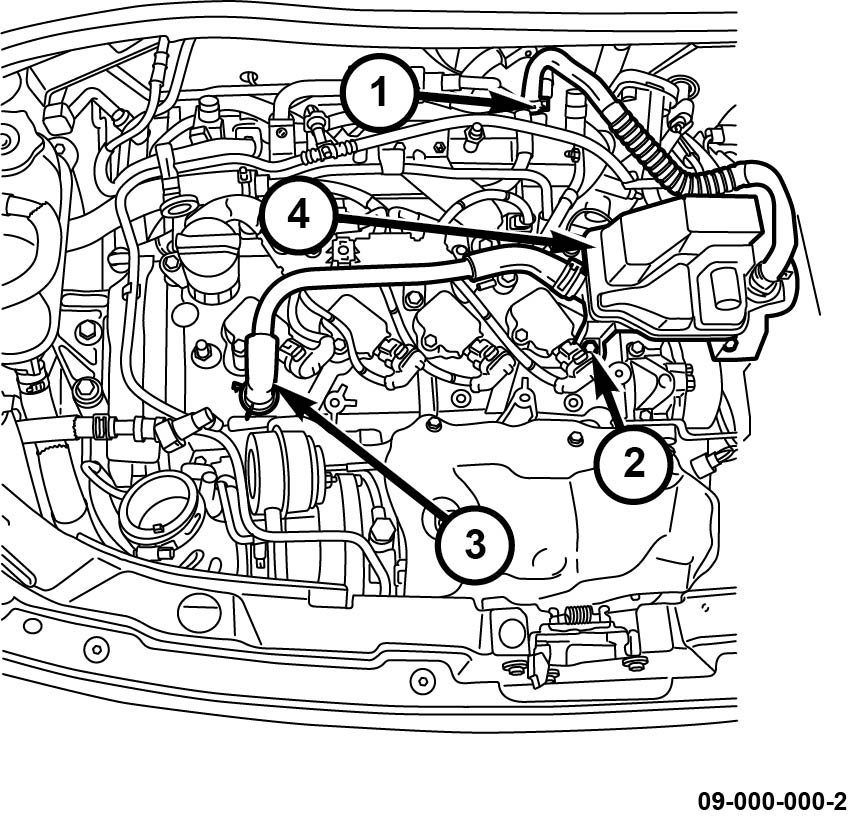

    GC0155887Courtesy of CHRYSLER GROUP, LLC
  7. Connect the vent hose (3) to the cylinder head cover.
    GC0153787Courtesy of CHRYSLER GROUP, LLC
  8. Install the air cleaner body (1). Refer to BODY, AIR CLEANER, INSTALLATION .
  9. Connect the negative battery cable and tighten nut to 5 Nm (45 lbf-in).
