Module, Anti-Lock Brake System: Installation

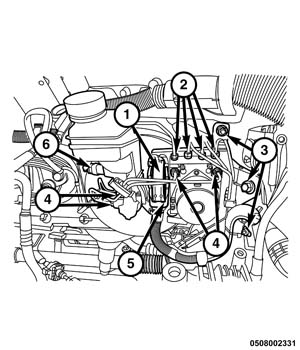

- Position the Integrated Control Unit (ICU) onto the mounting pin.
- Install mounting fasteners (3) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS
.CAUTION:
Before installing the ABM harness connector on the ABM, be sure the seal is properly installed in the connector.
- Insert the ABM wiring harness connector (1) into the socket of the ABM and close the cover (5), locking the connector in place.
- Install the four chassis brake tubes (2) brake tubes at the ICU hydraulic control unit. Tighten the tube nuts to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the primary and secondary brake tubes (4) at the ICU hydraulic control unit. Tighten the tube nuts to the proper specification. Refer to TORQUE SPECIFICATIONS
.

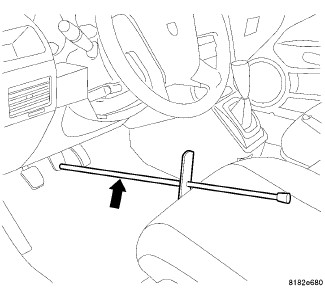

- Remove the brake pedal holding tool.
- Install the engine appearance cover.
- Reconnect the negative battery cable.
- Install a scan tool to initialize the ABM and perform the following:
- Clear any faults.

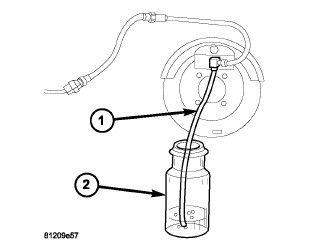

- Fill the master cylinder to the proper fill level and bleed the base and ABS hydraulic systems. Refer to BASE BRAKE BLEEDING and ANTILOCK BRAKE SYSTEM BLEEDING .
- Check for leaks.
- Perform the Verification Test and clear any faults. Refer to ABS VERIFICATION TEST .
