Automatic Temperature Control (ATC)

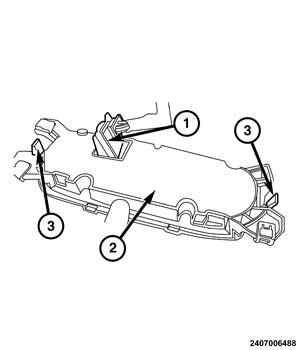

GC0158910Courtesy of CHRYSLER GROUP, LLC
  1. Position the A/C heater control (2) to the instrument panel and connect the HVAC wire harness connector (1).

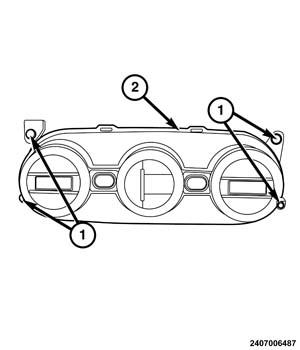

    GC0159033Courtesy of CHRYSLER GROUP, LLC
  2. Install the four screws (1) that secure the A/C heater control (2) to the instrument panel. Tighten the screws securely.

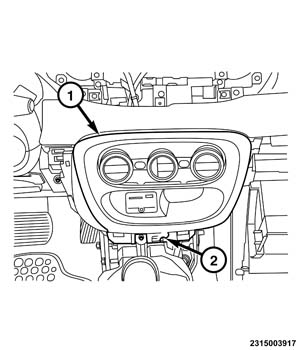

    GC0158815Courtesy of CHRYSLER GROUP, LLC
  3. Install the instrument panel Heating and A/C bezel (1). Refer to BEZEL, INSTRUMENT PANEL, HEATING AND A/C, INSTALLATION .
  4. Connect the negative battery cable.
  5. Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
