Module, Vehicle Pedestrian Alert: Installation

Courtesy of CHRYSLER GROUP, LLC

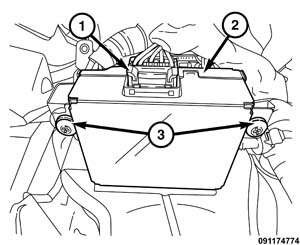

1. Install the pedestrian alert module (2), and the two plastic retainers (3).
2. Connect the pedestrian alert module electrical connector (1).

   Courtesy of CHRYSLER GROUP, LLC

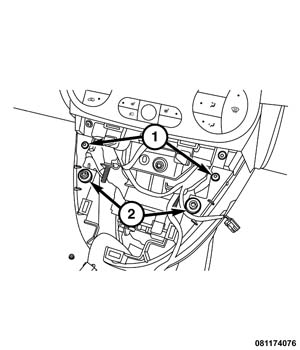

3. Install the two center console bolts (2), and the two center console screws (1).
4. Connect the floor console 12 volt outlet electrical connector.

   Courtesy of CHRYSLER GROUP, LLC

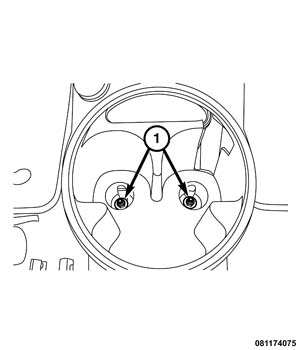

5. Install and tighten the two front floor console nuts (1) to 8 Nm (71 lbf-in), and install the cup holder insert.

   Courtesy of CHRYSLER GROUP, LLC

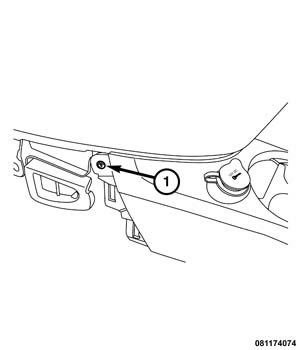

6. Install the two front floor console screws (1).

   Courtesy of CHRYSLER GROUP, LLC

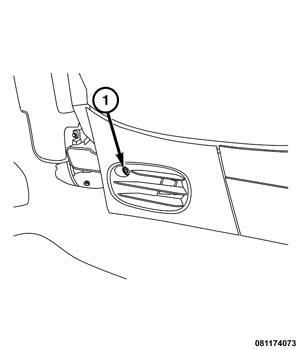

7. Install the two floor console vent panels, and the two floor console vent panel screws (1).

   Courtesy of CHRYSLER GROUP, LLC

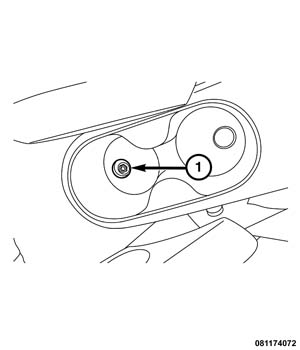

8. Install and tighten the rear floor console nut (1) to 8 Nm (71 lbf-in), and install the rear cup holder insert.

   Courtesy of CHRYSLER GROUP, LLC

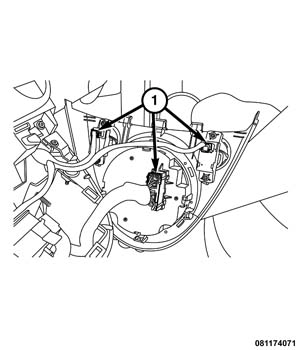

9. Connect the three electrical connectors (1).

   Courtesy of CHRYSLER GROUP, LLC

10. Install the electronic shifter switch bezel (1).
11. Connect the negative 12 volt battery cable. Refer to ELECTRIC VEHICLE CONTROL SYSTEM, STANDARD PROCEDURE .
