Module, Anti-Lock Brake System (Abs): Installation

Due to packaging and limited space it is necessary to install the Antilock Brake Module (ABM) on the Hydraulic Control Unit (HCU), then install the Integrated Control Unit (ICU) on the vehicle as an assembly.

  1. Install the Antilock Brake System Module (ABS) on the Hydraulic Control unit (HCU) lining up the solenoids with the valves.

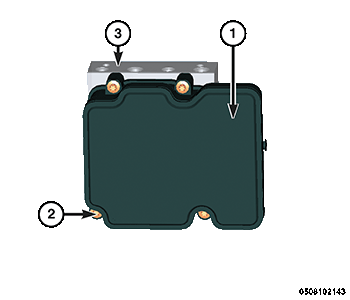

    GC0173413Courtesy of CHRYSLER GROUP, LLC
  2. Install the four bolts (2) mounting the ABS (1) to the HCU (3). Tighten the ABS mounting bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the Integrated Control Unit (ICU) in the vehicle. Refer to INSTALLATION .
