Fuel Injectors

REMOVAL

1. Remove the fuel rail. Refer to RAIL, FUEL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

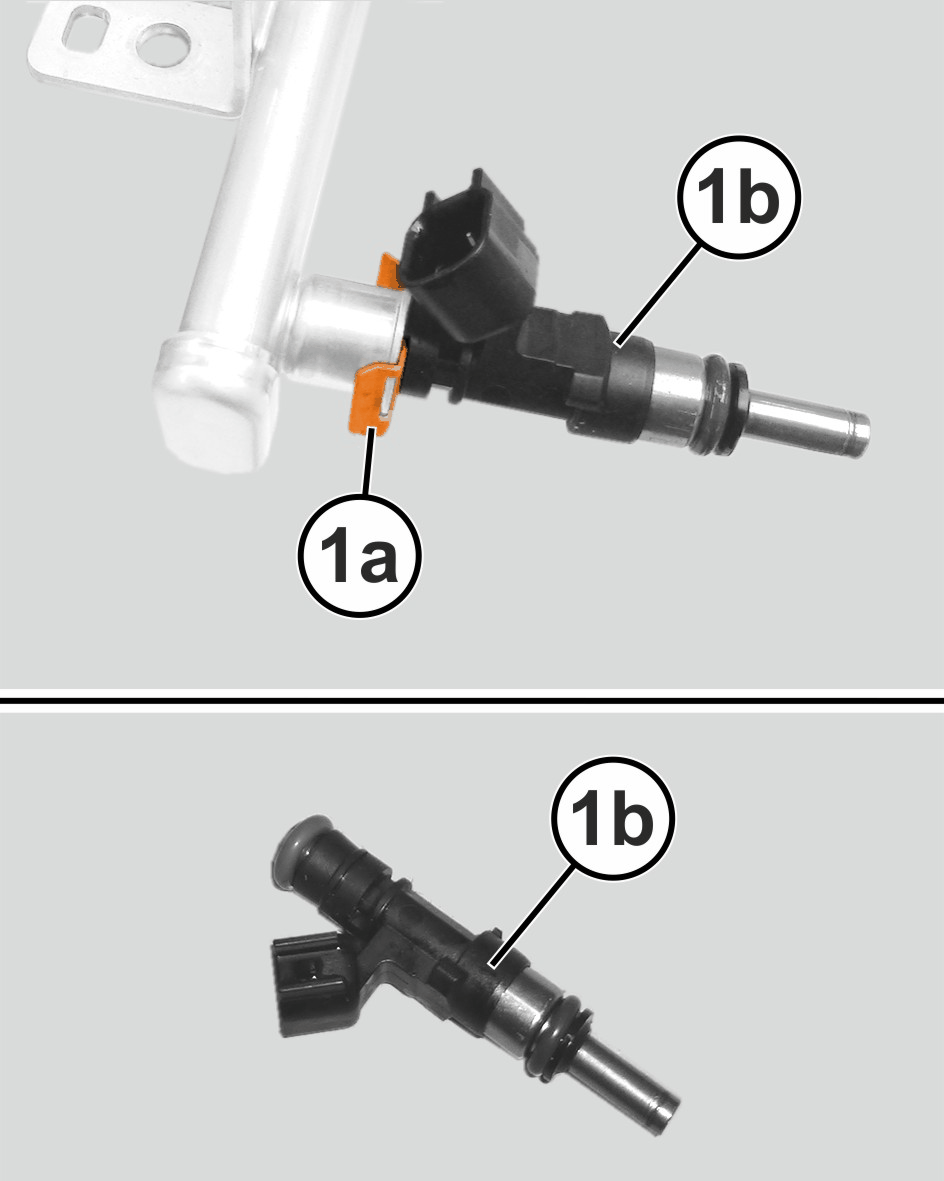

2. Remove the clip (1a) and disconnect the injector (1b) complete with O-rings.
3. Proceed in the same way and remove the remaining injectors.

INSTALLATION

1. Connect the injectors with the new O-rings and engage the retaining clips.
2. Install the fuel rail. Refer to RAIL, FUEL, REMOVAL AND INSTALLATION .
