Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

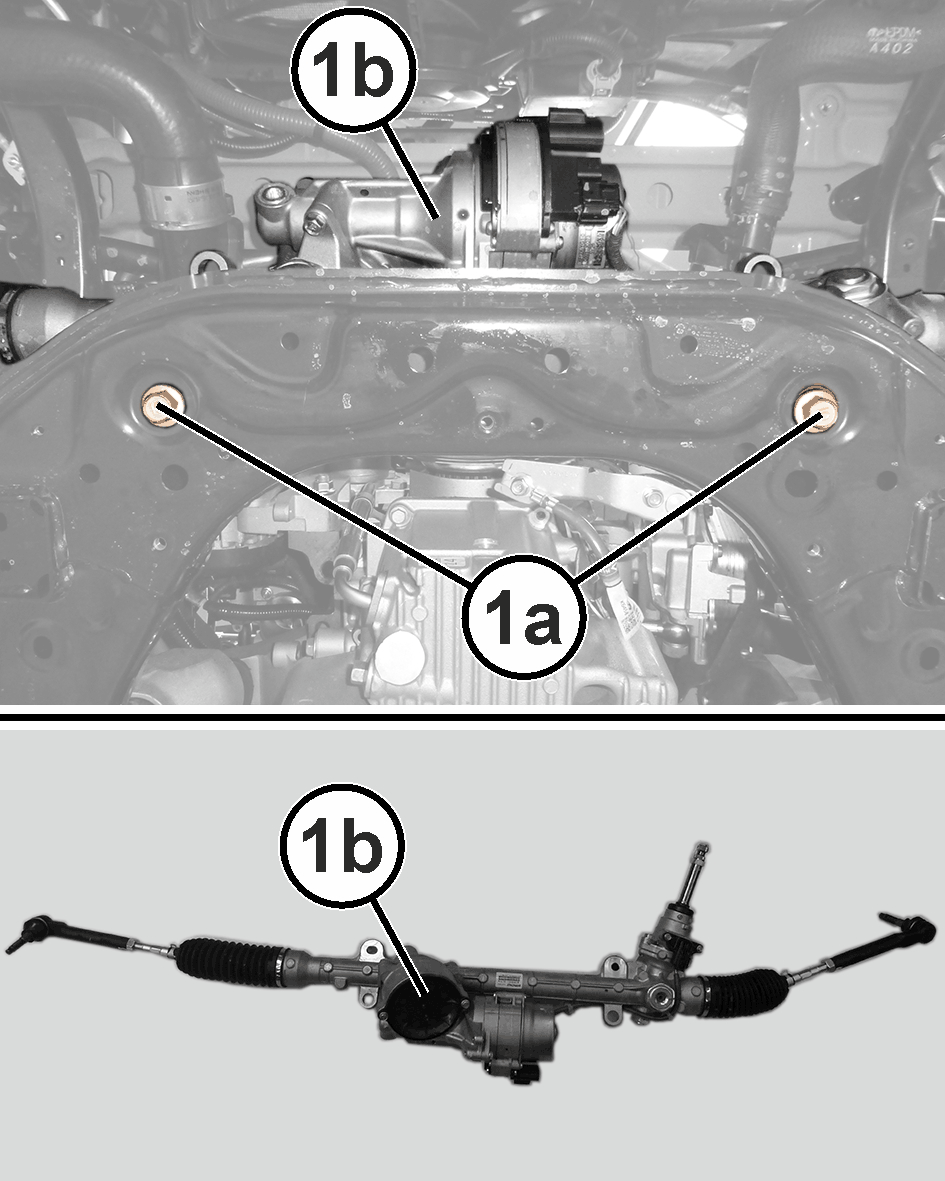

Position the steering gear (1b) to the front suspension crossmember.
Install the two steering gear to cradle mounting bolts (1a).
Tighten steering gear to cradle mounting bolts (1a) to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

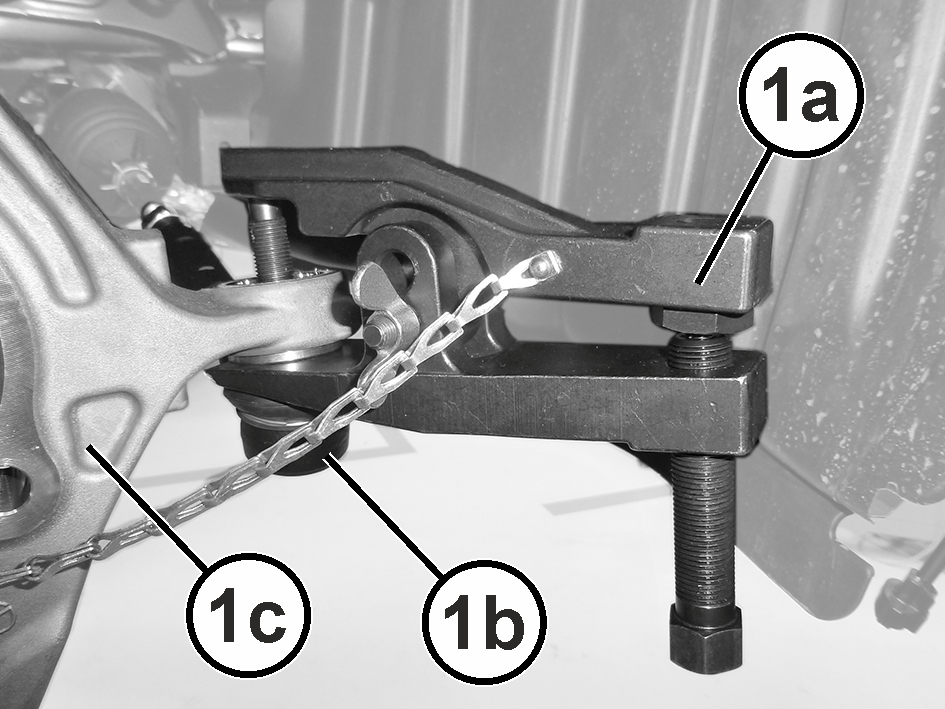

Connect both outer tie rod ends (1b) to the steering knuckle (1c).

Courtesy of CHRYSLER GROUP, LLC

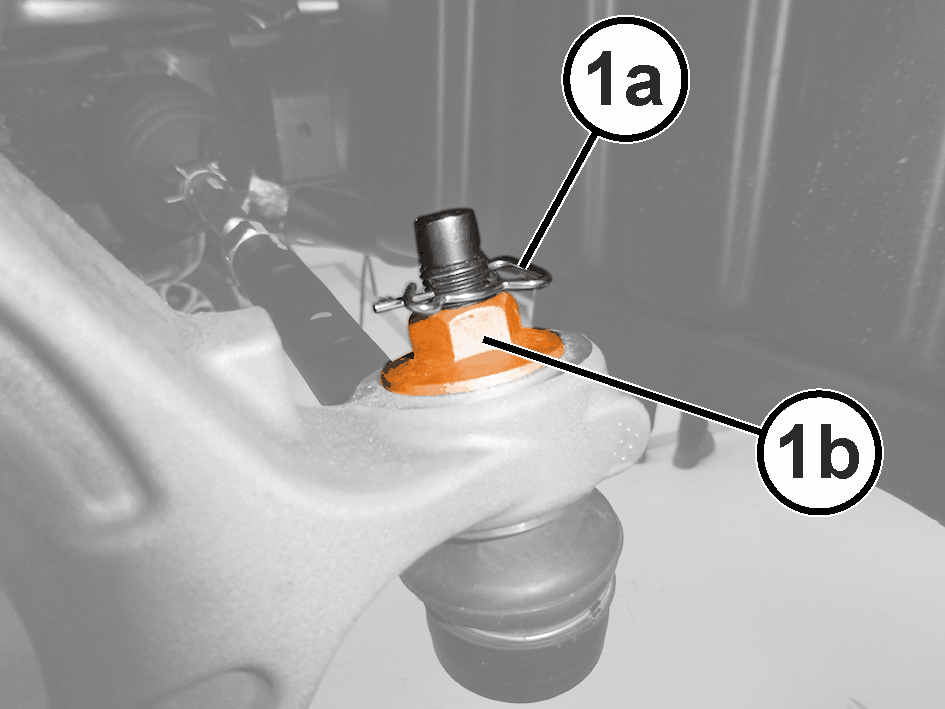

Install both tie rod end mounting nuts (1b) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
Insert both split pins (1a).

Courtesy of CHRYSLER GROUP, LLC

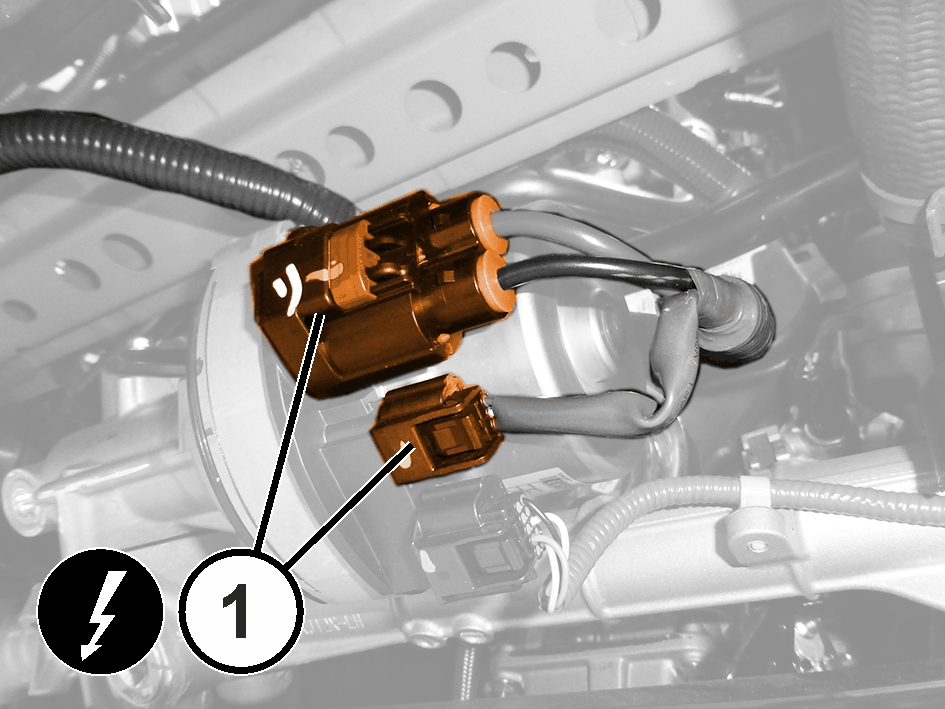

Connect the two wire harness connectors (1) to the Electric Power Steering (EPS) steering gear.

Courtesy of CHRYSLER GROUP, LLC
Install the front additional half wheel arches mounts (1b) then install the two mounting bolts (1a) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

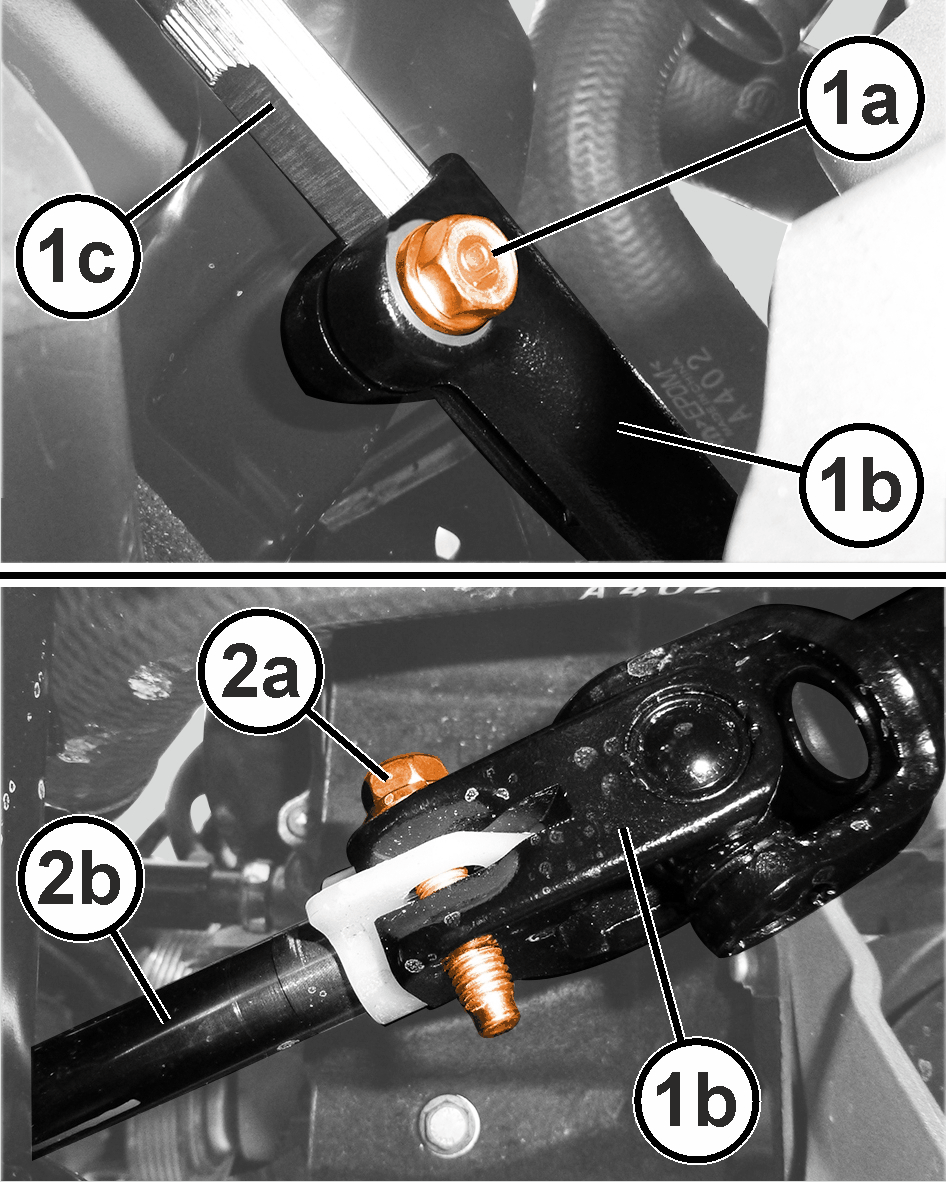

Position the steering shaft (1b) onto the steering input shaft (2b).
Install the lower steering shaft pinch bolt (2a) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

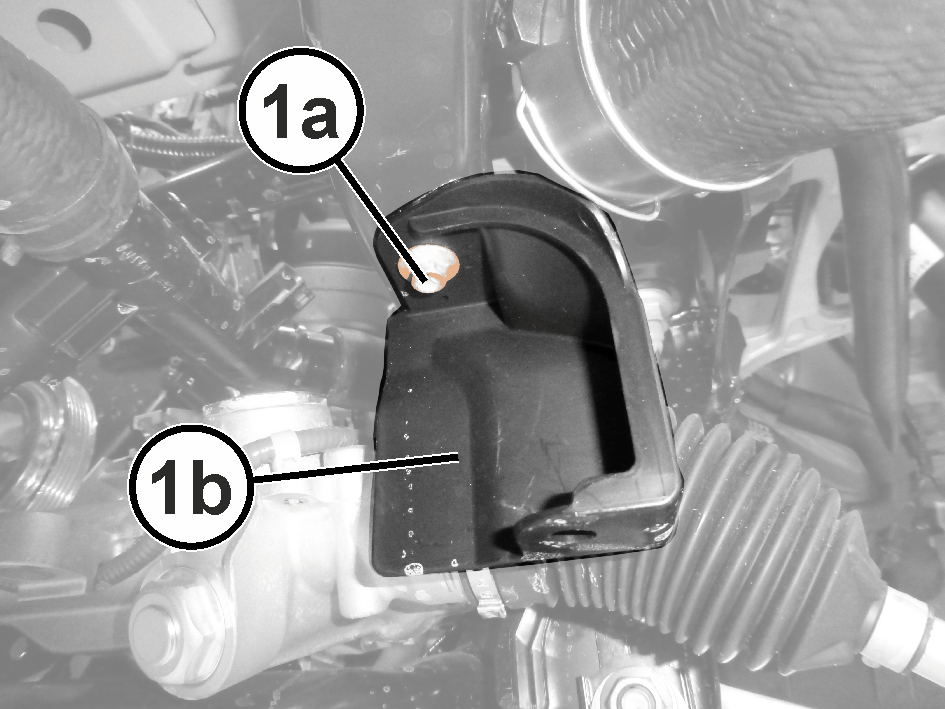

Position the return rigid pipe (1b) for the engine coolant from the radiator. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
Install the mounting bolt (1a) securing the return rigid pipe (1b) for the engine coolant from the radiator and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
Install the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
Install the front belly pan. Refer to BELLY PAN, FRONT, REMOVAL AND INSTALLATION .
Install the both front wheelhouse splash shields. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
Install the front tires. Refer to REMOVAL AND INSTALLATION .
Install the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
Install the supports and lower the vehicle.
