Removal And Installation: Removal

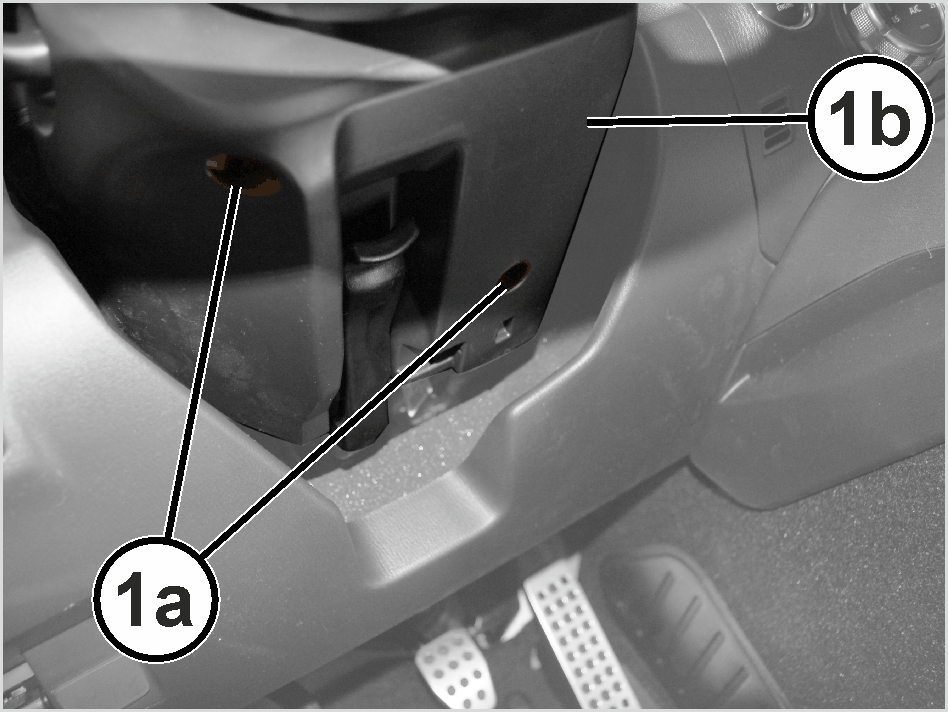

GC0175581Courtesy of CHRYSLER GROUP, LLC
  1. Place the steering column tilt lever in the released position.
  2. Remove the mounting screws (1a) of the steering column lower shroud (1b).

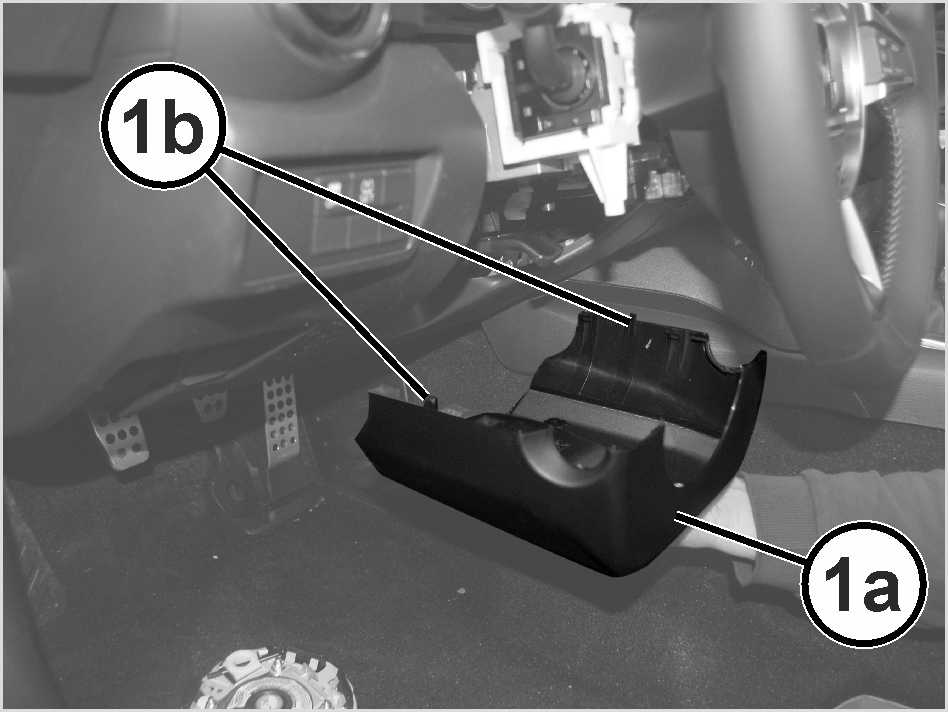

    GC0175652Courtesy of CHRYSLER GROUP, LLC
  3. Remove the steering column lower shroud (1a) by releasing the internal retainers (1b).
