Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the steering column. Refer to COLUMN, REMOVAL AND INSTALLATION .
    GC0176170Courtesy of CHRYSLER GROUP, LLC

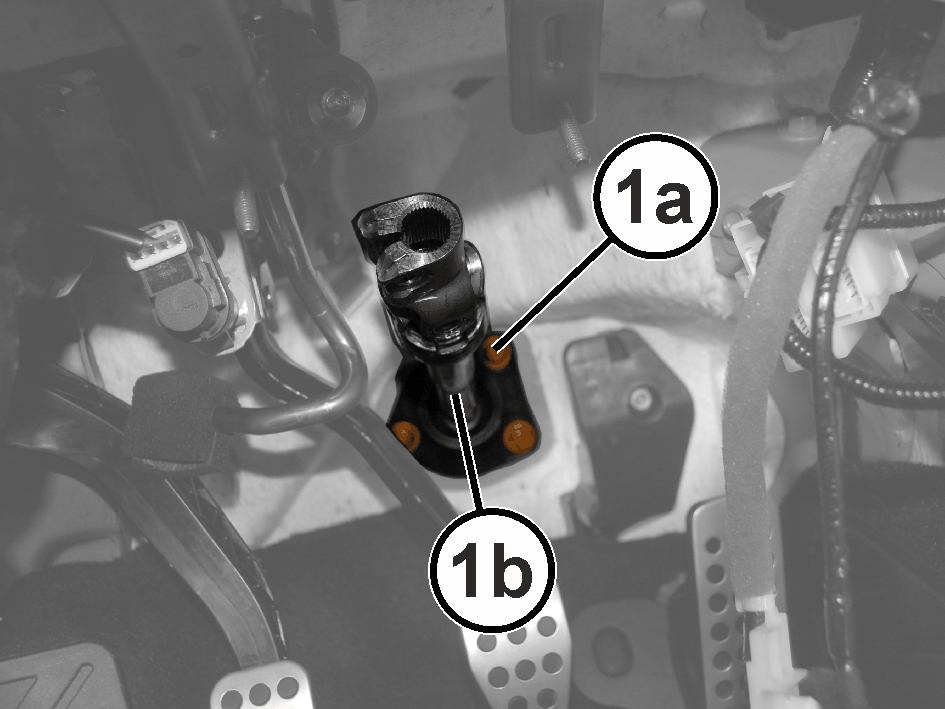

  3. Remove the mounting nuts (1a) securing the intermediate shaft plate (1b) to the front bulkhead.
  4. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    GC0175911Courtesy of CHRYSLER GROUP, LLC

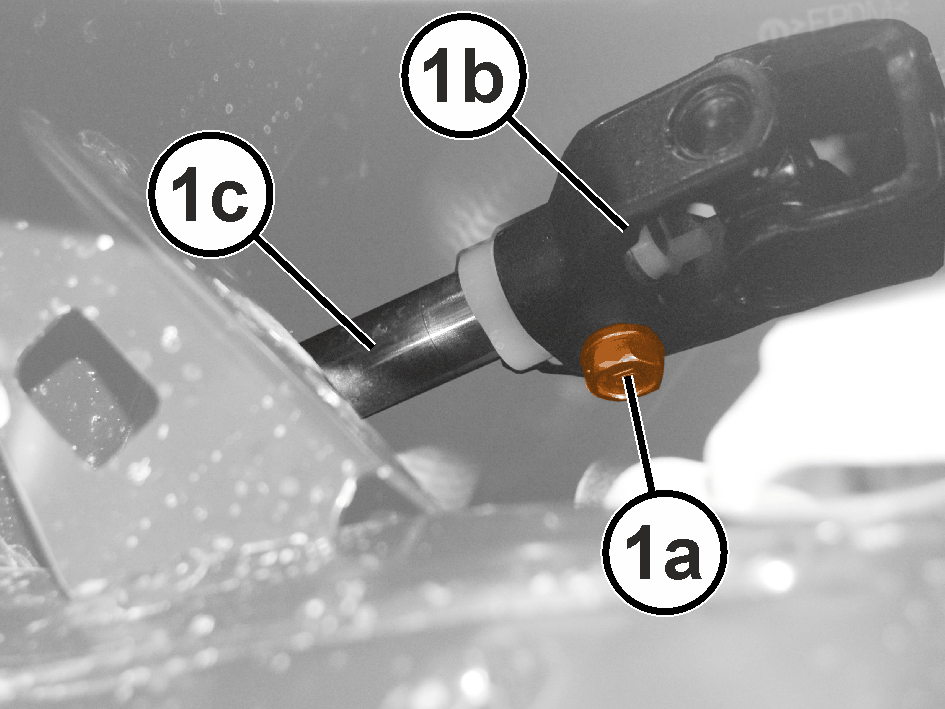

  5. Remove and DISCARD  the intermediate shaft pinch bolt (1a) at the universal joint (1b) and disconnect the shaft (1c).
    GC0175950Courtesy of CHRYSLER GROUP, LLC

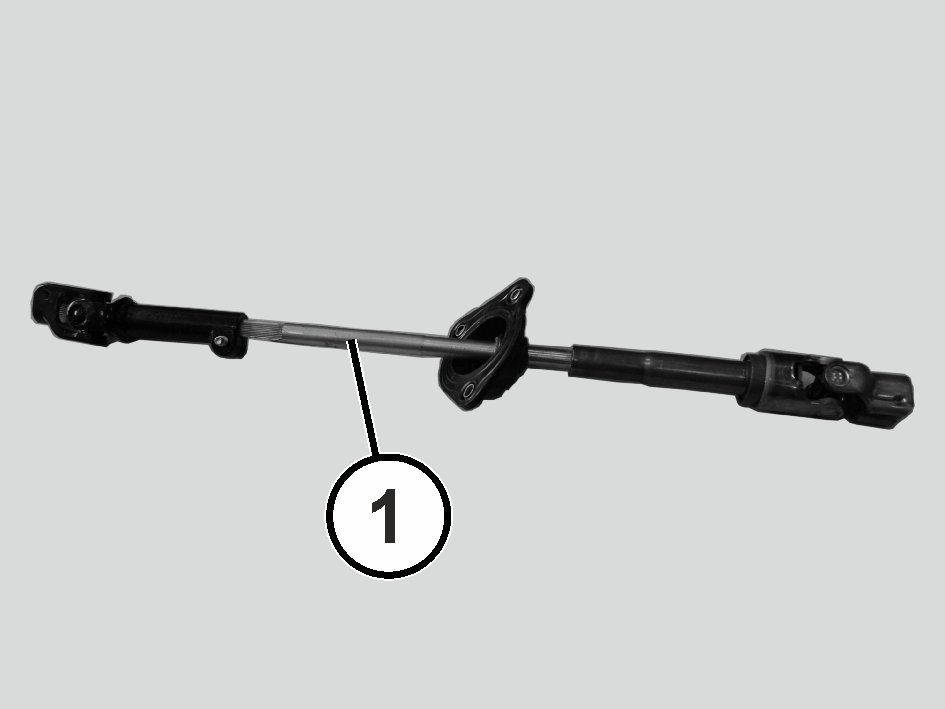

  6. Lower the vehicle and from inside remove the upper intermediate shaft through the opening in the front bulkhead.
