Removal And Installation

NOTE:

Using different spark plugs from the recommended ones can cause damage to the engine and alter the exhaust emission levels.

REMOVAL

Remove the ignition coils. Refer to COIL, IGNITION, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Using a suitable spanner (1a), remove the spark plug (1b).

INSTALLATION

Select or reuse the proper spark plug for this engine.

Courtesy of CHRYSLER GROUP, LLC

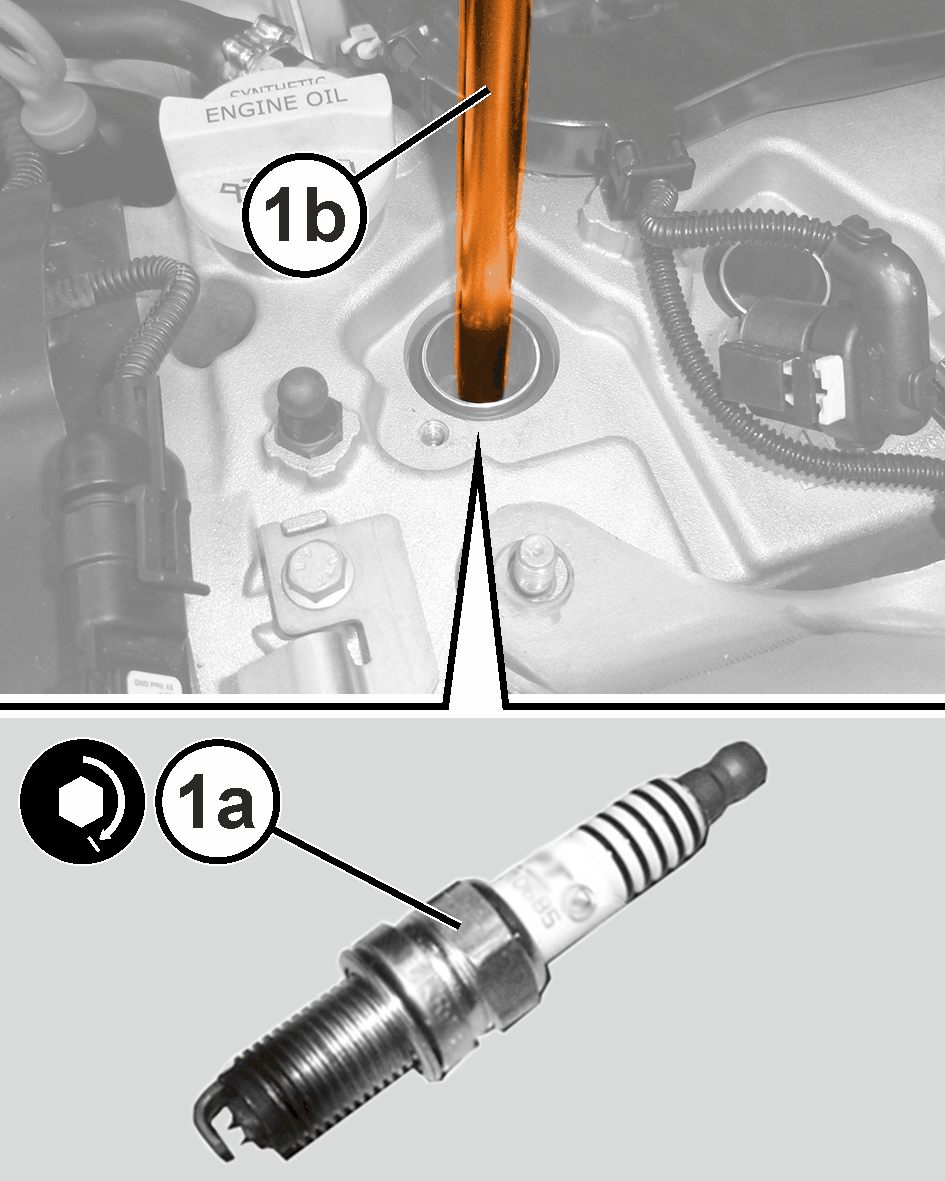

Using a suitable spanner (1b), install the spark plug (1a) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
Install the ignition coil. Refer to REMOVAL AND INSTALLATION .
